Step1: Product

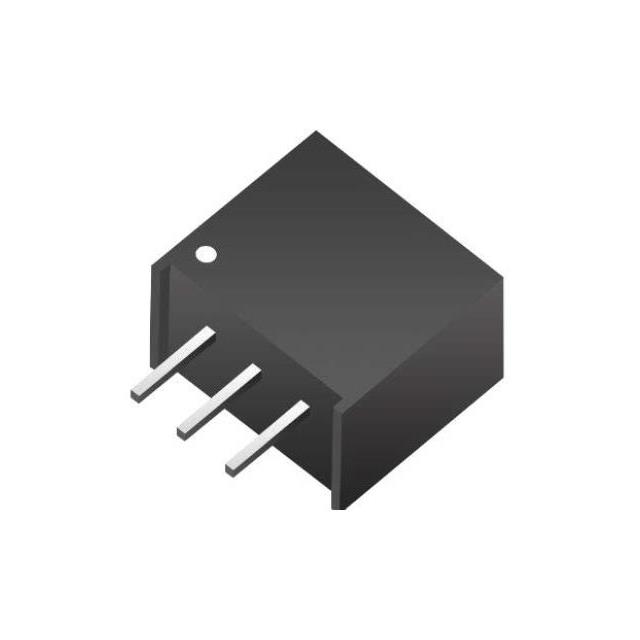

Adam Tech NL1-3P3-P5
Image shown is a representation only
Manufacturer
Manufacturer No
NL1-3P3-P5
Package
3-SIP Module
Packaging
Tube
Description
DC-DC CONVERTER, NON-ISOLATED, S
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 500mA 4.75V - 34V Input
DataSheet
Mfr
Adam Tech
Type
Non-Isolated PoL Module
Series
NL1-P5
Packaging
Tube
Efficiency
81%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
1.65 W
Package / Case
3-SIP Module
Size / Dimension
0.46" L x 0.30" W x 0.41" H (11.7mm x 7.5mm x 10.5mm)
Number of Outputs
1
Voltage - Output 1
3.3V
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
34V
Voltage - Input (Min)
4.75V
Current - Output (Max)
500mA
| Attribute | Value |
|---|---|
| Mfr | Adam Tech |
| Type | Non-Isolated PoL Module |
| Series | NL1-P5 |
| Packaging | Tube |
| Efficiency | 81% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 1.65 W |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.30" W x 0.41" H (11.7mm x 7.5mm x 10.5mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 34V |
| Voltage - Input (Min) | 4.75V |
| Current - Output (Max) | 500mA |
