Step1: Product

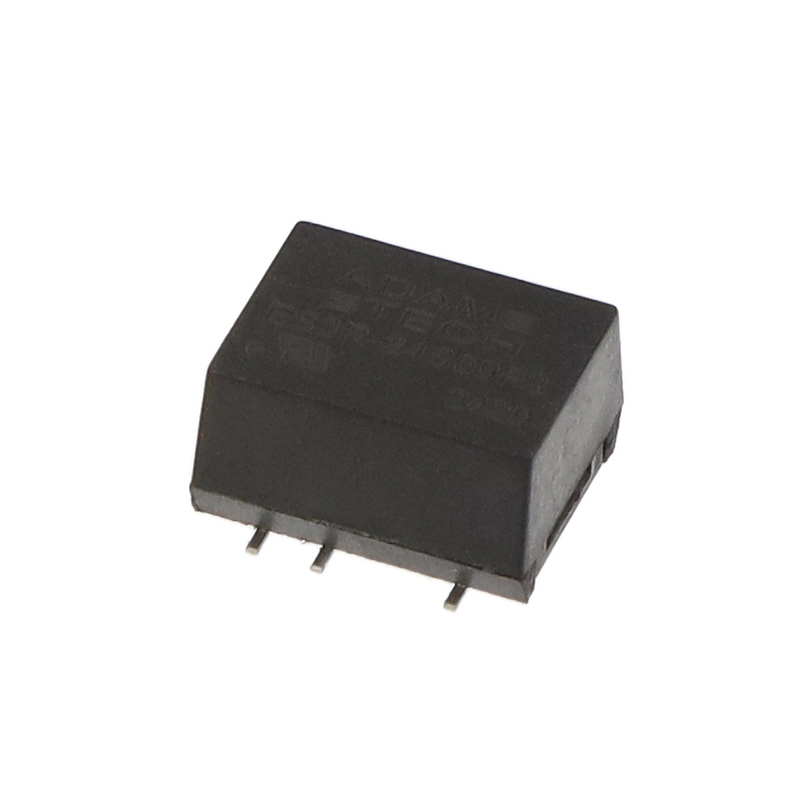

Adam Tech ES3R-24S09P3
Image shown is a representation only
Manufacturer
Manufacturer No
ES3R-24S09P3
Package
8-SMD Module, 5 Leads
Packaging
Tube
Description
DC-DC CONVERTER, ISOLATED MODULE
Detailed Description
Isolated Module DC DC Converter 1 Output 9V 112mA 19.2V - 28.8V Input
DataSheet
Mfr
Adam Tech
Type
Isolated Module
Series
EC3 (1W)
Packaging
Tube
Efficiency
85%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Power (Watts)
1 W
Package / Case
8-SMD Module, 5 Leads
Size / Dimension
0.50" L x 0.43" W x 0.28" H (12.8mm x 10.8mm x 7.1mm)
Number of Outputs
1
Voltage - Output 1
9V
Voltage - Isolation
3 kV
Operating Temperature
-40°C ~ 105°C (With Derating)
Voltage - Input (Max)
28.8V
Voltage - Input (Min)
19.2V
Current - Output (Max)
112mA
| Attribute | Value |
|---|---|
| Mfr | Adam Tech |
| Type | Isolated Module |
| Series | EC3 (1W) |
| Packaging | Tube |
| Efficiency | 85% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Power (Watts) | 1 W |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.50" L x 0.43" W x 0.28" H (12.8mm x 10.8mm x 7.1mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 9V |
| Voltage - Isolation | 3 kV |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Voltage - Input (Max) | 28.8V |
| Voltage - Input (Min) | 19.2V |
| Current - Output (Max) | 112mA |
