Step1: Product

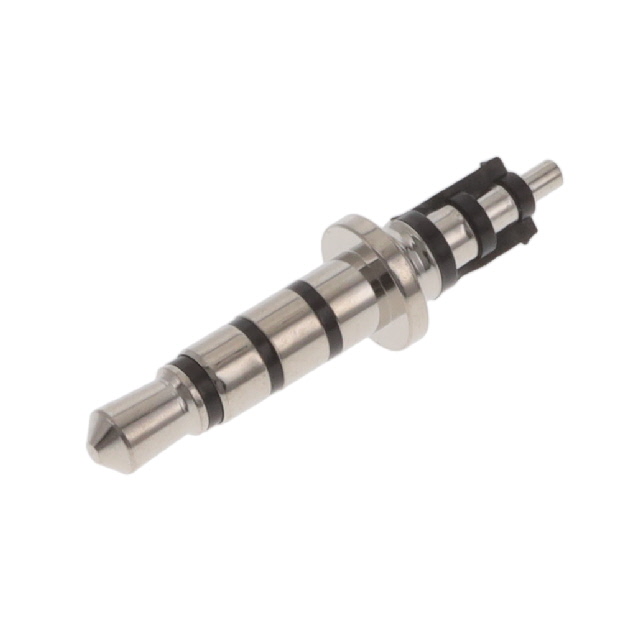

Adam Tech ASP-3.5-S3-24.2
Image shown is a representation only
Manufacturer
Manufacturer No
ASP-3.5-S3-24.2
Packaging
Bag
Description
3.5MM AUDIO PLUG
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
DataSheet
Mfr
Adam Tech
Gender
Male
Series
ASP
Packaging
Bag
Shielding
Unshielded
Part Status
Active
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Mounting Type
Free Hanging (In-Line)
Connector Type
Phone Plug
Voltage - Rated
30VDC
Contact Material
Copper
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Base Product Number
ASP-3.5-S
Mating Length/Depth
0.551" (14.00mm)
Current Rating (Amps)
500 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Adam Tech |
| Gender | Male |
| Series | ASP |
| Packaging | Bag |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Phone Plug |
| Voltage - Rated | 30VDC |
| Contact Material | Copper |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | ASP-3.5-S |
| Mating Length/Depth | 0.551" (14.00mm) |
| Current Rating (Amps) | 500 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
