Step1: Product

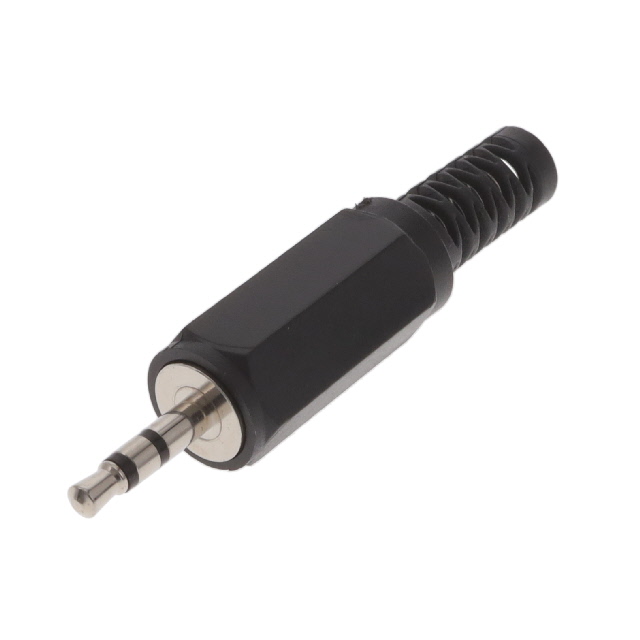

Adam Tech ASP-2.5.-S-SR
Image shown is a representation only
Manufacturer
Manufacturer No
ASP-2.5.-S-SR
Packaging
Bag
Description
CONN PLUG STEREO 2.5MM 3COND
Detailed Description
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
DataSheet
Mfr
Adam Tech
Gender
Male
Series
ASP
Features
Strain Relief
Includes
2 pcs - 1 Connector, 1 Handle
Packaging
Bag
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Obsolete
Termination
Solder Eyelet(s)
Signal Lines
Stereo (3 Conductor, TRS)
Body Material
Brass
Cable Opening
0.181" (4.60mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Phone Plug
Actual Diameter
0.098" (2.50mm)
Contact Material
Brass
Housing Material
Polyethylene (PE)
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Base Product Number
ASP-2.5
Mating Length/Depth
0.433" (11.00mm)
Contact Material - Plating
Nickel
Number of Positions/Contacts
3 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Adam Tech |
| Gender | Male |
| Series | ASP |
| Features | Strain Relief |
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Obsolete |
| Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Body Material | Brass |
| Cable Opening | 0.181" (4.60mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Phone Plug |
| Actual Diameter | 0.098" (2.50mm) |
| Contact Material | Brass |
| Housing Material | Polyethylene (PE) |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | ASP-2.5 |
| Mating Length/Depth | 0.433" (11.00mm) |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
