Step1: Product

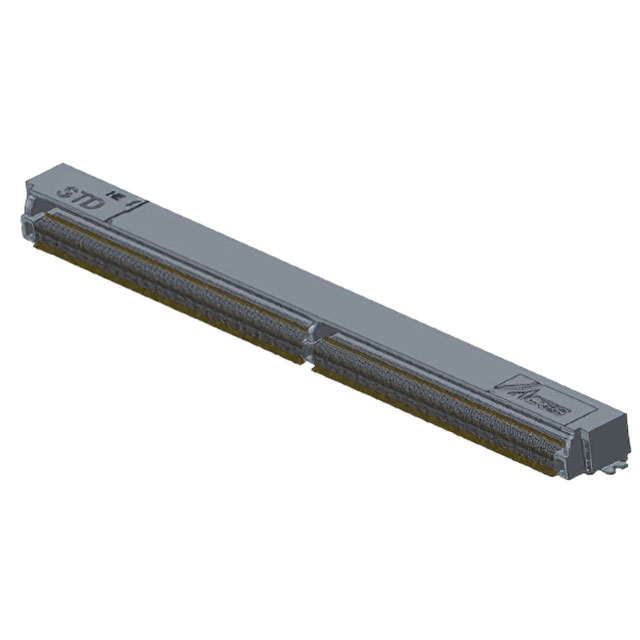

Aces Connectors 52741-3140A-002
Image shown is a representation only
Manufacturer
Manufacturer No
52741-3140A-002
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MXM PCIE GEN 4 0.5MM PITCH 314P
Detailed Description
314 Position Female Connector MXM 3.0 Gold 0.020" (0.50mm) Black
DataSheet
Color
Black
Pitch
0.020" (0.50mm)
Gender
Female
Series
52741
Features
Board Guide, Solder Retention
Read Out
Dual
Card Type
MXM 3.0
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Termination
Solder
Manufacturer
Aces Connectors
Mounting Type
Surface Mount, Right Angle
Card Thickness
0.047" (1.20mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
2
Number of Positions
314
Material - Insulation
Thermoplastic
Operating Temperature
-55°C ~ 85°C
Contact Finish Thickness
3.00µin (0.076µm)
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.020" (0.50mm) |
| Gender | Female |
| Series | 52741 |
| Features | Board Guide, Solder Retention |
| Read Out | Dual |
| Card Type | MXM 3.0 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Aces Connectors |
| Mounting Type | Surface Mount, Right Angle |
| Card Thickness | 0.047" (1.20mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Termination Rows | 2 |
| Number of Positions | 314 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish Thickness | 3.00µin (0.076µm) |
