Step1: Product
Aces Connectors 51700-0520W-001

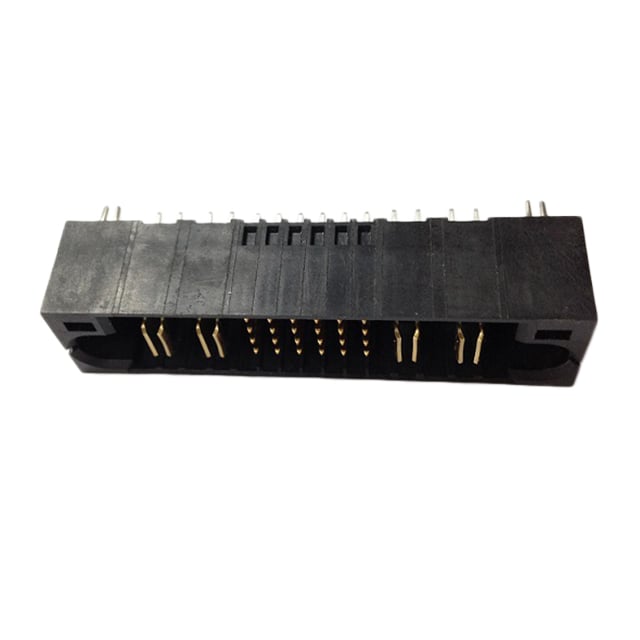

Image shown is a representation only
Manufacturer
Manufacturer No
51700-0520W-001
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MINI PCIE EXPRESS REVERSE TYPE 0
Detailed Description
52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
DataSheet
Color
Black
Pitch
0.031" (0.80mm)
Gender
Female
Series
51700
Features
Board Guide
Read Out
Dual
Card Type
PCI Express Mini Card
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
Aces Connectors
Mounting Type
Surface Mount, Right Angle
Card Thickness
0.039" (1.00mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
2
Number of Positions
52
Material - Insulation
Thermoplastic
Operating Temperature
-40°C ~ 80°C
Contact Finish Thickness
1.00µin (0.025µm)
Number of Positions/Bay/Row
8; 18
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.031" (0.80mm) |
| Gender | Female |
| Series | 51700 |
| Features | Board Guide |
| Read Out | Dual |
| Card Type | PCI Express Mini Card |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Aces Connectors |
| Mounting Type | Surface Mount, Right Angle |
| Card Thickness | 0.039" (1.00mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Termination Rows | 2 |
| Number of Positions | 52 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish Thickness | 1.00µin (0.025µm) |
| Number of Positions/Bay/Row | 8; 18 |
