Step1: Product

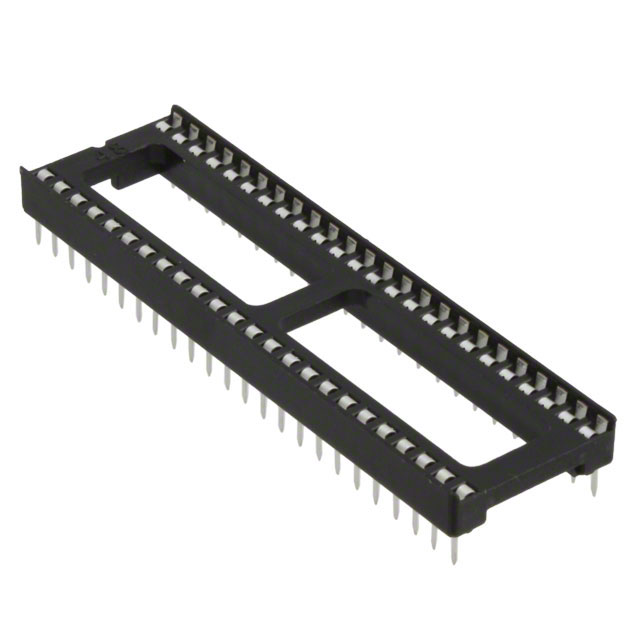

3M 4848-6000-CP
Image shown is a representation only
Manufacturer
Manufacturer No
4848-6000-CP
Packaging
Tube
Description
CONN IC DIP SOCKET 48POS TIN
Detailed Description
48 (2 x 24) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
DataSheet
Type
DIP, 0.6" (15.24mm) Row Spacing
Series
4800
Features
Open Frame
Packaging
Tube
Part Status
Active
Termination
Solder
Manufacturer
3M
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polyester, Glass Filled
Base Product Number
4848
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Contact Material - Post
Phosphor Bronze
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
35.0µin (0.90µm)
Contact Finish Thickness - Mating
35.4µin (0.90µm)
Number of Positions or Pins (Grid)
48 (2 x 24)
| Attribute | Value |
|---|---|
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Series | 4800 |
| Features | Open Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polyester, Glass Filled |
| Base Product Number | 4848 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 35.0µin (0.90µm) |
| Contact Finish Thickness - Mating | 35.4µin (0.90µm) |
| Number of Positions or Pins (Grid) | 48 (2 x 24) |
