Step1: Product

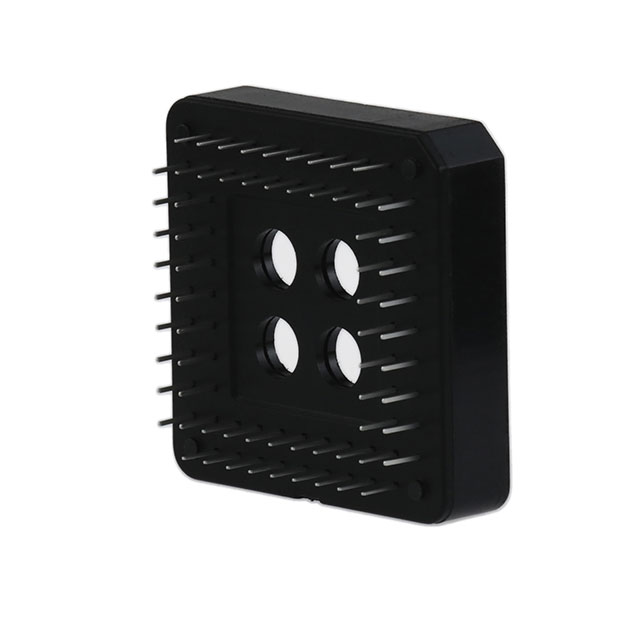

3M 8468-11B1-RK-TP
Image shown is a representation only
Manufacturer
Manufacturer No
8468-11B1-RK-TP
Quantity
36
Availability
In Stock
Packaging
Tube
Description
CONN SOCKET PLCC 68POS TIN
Detailed Description
68 (4 x 17) Pos PLCC Socket Tin Through Hole
DataSheet
Type
PLCC
Series
8400
Features
Closed Frame
Packaging
Tube
Part Status
Obsolete
Termination
Solder
Manufacturer
3M
Pitch - Post
0.050" (1.27mm)
Mounting Type
Through Hole
Pitch - Mating
0.050" (1.27mm)
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Base Product Number
8468
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Material - Post
Copper Alloy
Termination Post Length
0.132" (3.35mm)
Contact Material - Mating
Copper Alloy
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
160.0µin (4.06µm)
Contact Finish Thickness - Mating
160.0µin (4.06µm)
Number of Positions or Pins (Grid)
68 (4 x 17)
| Attribute | Value |
|---|---|
| Type | PLCC |
| Series | 8400 |
| Features | Closed Frame |
| Packaging | Tube |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.050" (1.27mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Base Product Number | 8468 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Copper Alloy |
| Termination Post Length | 0.132" (3.35mm) |
| Contact Material - Mating | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Number of Positions or Pins (Grid) | 68 (4 x 17) |
