Step1: Product

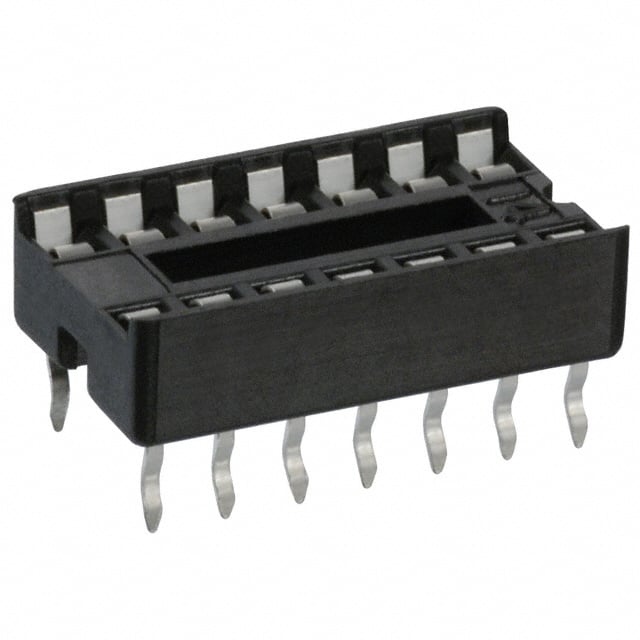

3M 4814-3004-CP
Image shown is a representation only
Manufacturer
Manufacturer No
4814-3004-CP
Packaging
Tube
Description
CONN IC DIP SOCKET 14POS TIN
Detailed Description
14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Datasheet
Type
DIP, 0.3" (7.62mm) Row Spacing
Series
4800
Features
Open Frame
Packaging
Tube
Termination
Solder
Manufacturer
3M
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polyester, Glass Filled
Base Product Number
4814
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Contact Material - Post
Phosphor Bronze
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
35.0µin (0.90µm)
Contact Finish Thickness - Mating
35.4µin (0.90µm)
Number of Positions or Pins (Grid)
14 (2 x 7)
| Attribute | Value |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Series | 4800 |
| Features | Open Frame |
| Packaging | Tube |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polyester, Glass Filled |
| Base Product Number | 4814 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 35.0µin (0.90µm) |
| Contact Finish Thickness - Mating | 35.4µin (0.90µm) |
| Number of Positions or Pins (Grid) | 14 (2 x 7) |
