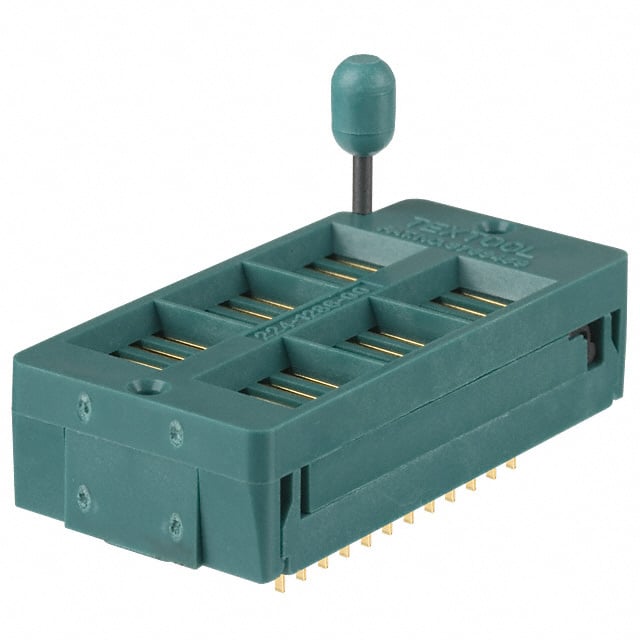

3M 224-1286-00-0602J
Image shown is a representation only
Manufacturer
Manufacturer No
224-1286-00-0602J
Packaging
Tube
Description
CONN IC DIP SOCKET ZIF 24POS GLD
Detailed Description
24 (2 x 12) Pos DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing Socket Gold Connector
DataSheet
Type
DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing
Series
Textool™
Features
Closed Frame
Packaging
Tube
Part Status
Active
Termination
Press-Fit
Manufacturer
3M
Pitch - Post
0.100" (2.54mm)
Mounting Type
Connector
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polysulfone (PSU), Glass Filled
Base Product Number
224
Contact Finish - Post
Gold
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Termination Post Length
0.110" (2.78mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Number of Positions or Pins (Grid)
24 (2 x 12)
| Attribute | Value |
|---|---|
| Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Series | Textool™ |
| Features | Closed Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | 3M |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Connector |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Base Product Number | 224 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.110" (2.78mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Number of Positions or Pins (Grid) | 24 (2 x 12) |
