Step1: Product
Zettler Magnetics BV301S24010

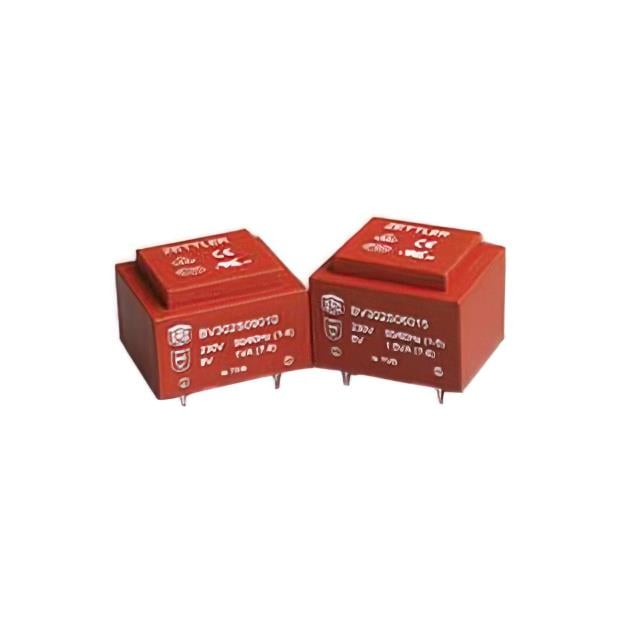

Image shown is a representation only
Manufacturer
Manufacturer No
BV301S24010
Packaging
Tube
Description
PWR XFMR 1VA TH
Detailed Description
1VA Power Transformer 115V Primary 24V Secondary 41mA Through Hole
DataSheet
Series
EI30-10.5
Packaging
Tube
Center Tap
No
Part Status
Active
Power - Max
1VA
Manufacturer
Zettler Magnetics
Mounting Type
Through Hole
Size / Dimension
32.80mm L x 27.80mm W
Termination Style
PC Pin
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
2800V
Secondary Winding(s)
Single
Current - Output (Max)
41mA
Voltage - Secondary (Full Load)
24V
| Attribute | Value |
|---|---|
| Series | EI30-10.5 |
| Packaging | Tube |
| Center Tap | No |
| Part Status | Active |
| Power - Max | 1VA |
| Manufacturer | Zettler Magnetics |
| Mounting Type | Through Hole |
| Size / Dimension | 32.80mm L x 27.80mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 2800V |
| Secondary Winding(s) | Single |
| Current - Output (Max) | 41mA |
| Voltage - Secondary (Full Load) | 24V |
