Step1: Product
Z-Communications, Inc. SMV5550B-LF

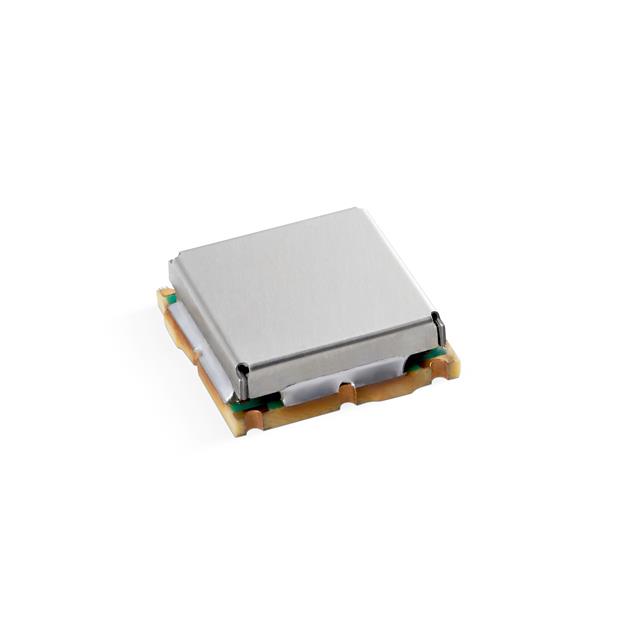

Image shown is a representation only
Manufacturer
Manufacturer No
SMV5550B-LF
Packaging
Strip
Description
VCO Frequency 5000 MHz - 6000 MH
Detailed Description
5500MHz Center Frequency Voltage Controlled Oscillator 3 ±3 dBm -35 2nd Harmonic Typ (dBc)
DataSheet
Height
0.110" (2.79mm)
Series
SMV
Icc Max
29mA
Packaging
Strip
Part Status
Active
Power (dBm)
3 ±3
Manufacturer
Z-Communications, Inc.
Frequency Range
5000 ~ 6000MHz
Pushing (MHz/V)
20
Size / Dimension
0.300" L x 0.300" W (7.62mm x 7.62mm)
Voltage - Supply
5V
Frequency - Center
5500MHz
Operating Temperature
-40°C ~ 85°C
2nd Harmonic, Typ (dBc)
-35
Phase Noise Typ (dBc/Hz)
-80
| Attribute | Value |
|---|---|
| Height | 0.110" (2.79mm) |
| Series | SMV |
| Icc Max | 29mA |
| Packaging | Strip |
| Part Status | Active |
| Power (dBm) | 3 ±3 |
| Manufacturer | Z-Communications, Inc. |
| Frequency Range | 5000 ~ 6000MHz |
| Pushing (MHz/V) | 20 |
| Size / Dimension | 0.300" L x 0.300" W (7.62mm x 7.62mm) |
| Voltage - Supply | 5V |
| Frequency - Center | 5500MHz |
| Operating Temperature | -40°C ~ 85°C |
| 2nd Harmonic, Typ (dBc) | -35 |
| Phase Noise Typ (dBc/Hz) | -80 |
