Step1: Product
YIC ATIGG2540

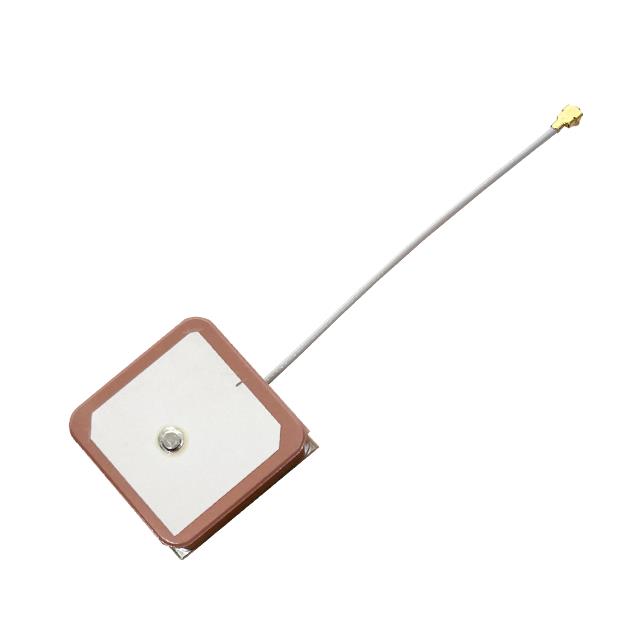

Image shown is a representation only
Manufacturer
Manufacturer No
ATIGG2540
Packaging
Tray
Description
RF ANT GNSS/GPS CER PATCH IPEX
Detailed Description
RF ANTENNA GLONASS, GPS Ceramic Patch I-PEX MHF Surface Mount
DataSheet
Gain
2dBi
VSWR
2
Series
ATIGG
Features
Cable - 60mm, LNA, Filter
Packaging
Tray
Part Status
Active
Termination
I-PEX MHF
Antenna Type
Ceramic Patch
Applications
GLONASS, GPS
Height (Max)
0.315" (8.00mm)
Manufacturer
YIC
Mounting Type
Surface Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz
Number of Bands
2
RF Family/Standard
Navigation
Frequency (Center/Band)
1.575GHz, 1.6085GHz
| Attribute | Value |
|---|---|
| Gain | 2dBi |
| VSWR | 2 |
| Series | ATIGG |
| Features | Cable - 60mm, LNA, Filter |
| Packaging | Tray |
| Part Status | Active |
| Termination | I-PEX MHF |
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, GPS |
| Height (Max) | 0.315" (8.00mm) |
| Manufacturer | YIC |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.575GHz, 1.6085GHz |
