Step1: Product

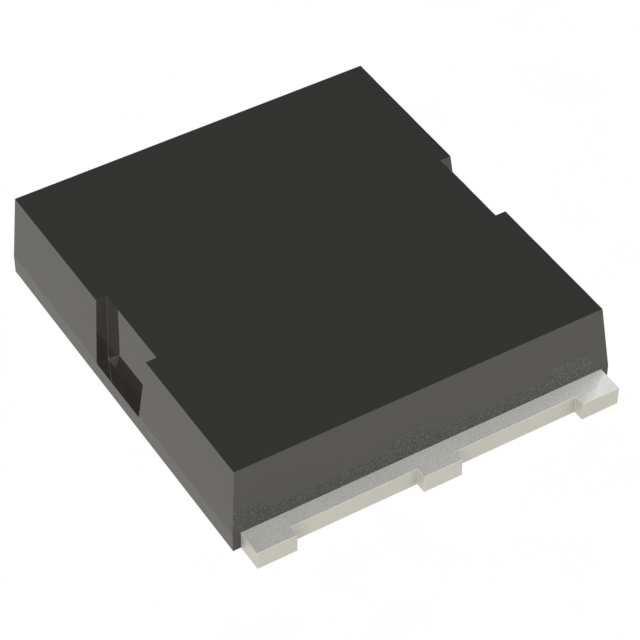

YAGEO XSEMI XP10NA1R5TL
Image shown is a representation only
Manufacturer
Manufacturer No
XP10NA1R5TL
Package
8-PowerSFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET N-CH 100V 300A TOLL
Detailed Description
N-Channel 100 V 300A (Tc) 3.75W (Ta), 333W (Tc) Surface Mount TOLL
DataSheet
Mfr
YAGEO XSEMI
Series
XP10NA1R5
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
8-PowerSFN
Vgs(th) (Max) @ Id
4V @ 250µA
Base Product Number
XP10
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
1.5mOhm @ 100A, 10V
Power Dissipation (Max)
3.75W (Ta), 333W (Tc)
Supplier Device Package
TOLL
Gate Charge (Qg) (Max) @ Vgs
304 nC @ 10 V
Drain to Source Voltage (Vdss)
100 V
Input Capacitance (Ciss) (Max) @ Vds
16960 pF @ 80 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
300A (Tc)
| Attribute | Value |
|---|---|
| Mfr | YAGEO XSEMI |
| Series | XP10NA1R5 |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSFN |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Base Product Number | XP10 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 100A, 10V |
| Power Dissipation (Max) | 3.75W (Ta), 333W (Tc) |
| Supplier Device Package | TOLL |
| Gate Charge (Qg) (Max) @ Vgs | 304 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 100 V |
| Input Capacitance (Ciss) (Max) @ Vds | 16960 pF @ 80 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 300A (Tc) |
