Step1: Product

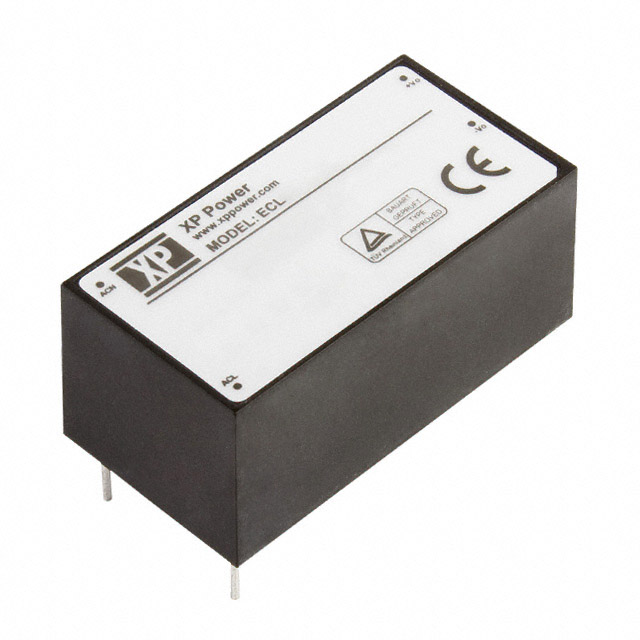

XP Power ECL10US24-E
Image shown is a representation only
Manufacturer
Manufacturer No
ECL10US24-E
Package
4-DIP Module
Packaging
Box
Description
AC/DC CONVERTER 24V 10W
Detailed Description
Enclosed AC DC Converters 1 Output 24V 420mA 85 ~ 264 VAC Input
DataSheet
Type
Enclosed
Series
ECL (10W)
Weight
0.132 lb (59.87 g)
Features
Universal Input
Packaging
Box
Efficiency
82%
Part Status
Active
Applications
ITE (Commercial)
Manufacturer
XP Power
Mounting Type
Through Hole
Power (Watts)
10 W
Package / Case
4-DIP Module
Approval Agency
CSA, cUL, EN, IEC, UL
Line Regulation
±0.5%
Load Regulation
±1%
Standard Number
62368-1
Voltage - Input
85 ~ 264 VAC
Size / Dimension
2.06" L x 1.07" W x 0.91" H (52.3mm x 27.2mm x 23.0mm)
Number of Outputs
1
Voltage - Output 1
24V
Base Product Number
ECL10US24
Operating Temperature
-20°C ~ 70°C (With Derating)
Current - Output (Max)
420mA
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Series | ECL (10W) |
| Weight | 0.132 lb (59.87 g) |
| Features | Universal Input |
| Packaging | Box |
| Efficiency | 82% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Manufacturer | XP Power |
| Mounting Type | Through Hole |
| Power (Watts) | 10 W |
| Package / Case | 4-DIP Module |
| Approval Agency | CSA, cUL, EN, IEC, UL |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Standard Number | 62368-1 |
| Voltage - Input | 85 ~ 264 VAC |
| Size / Dimension | 2.06" L x 1.07" W x 0.91" H (52.3mm x 27.2mm x 23.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Base Product Number | ECL10US24 |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Current - Output (Max) | 420mA |
