Step1: Product
XFMRS XFHCL4-5R6M

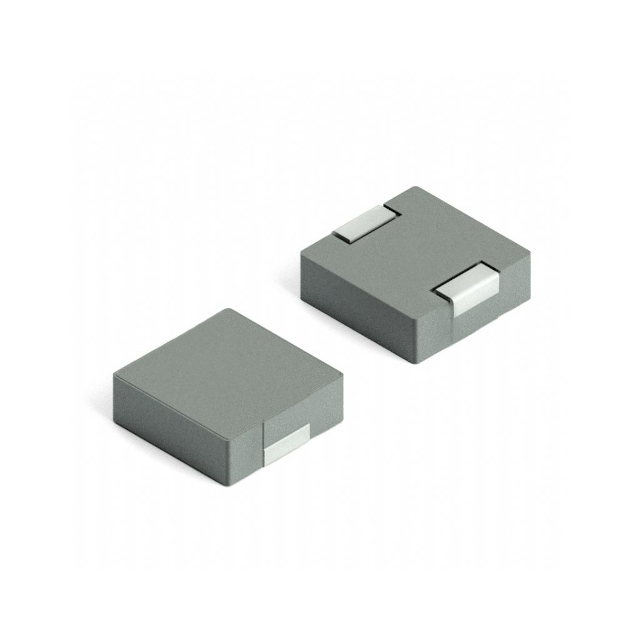

Image shown is a representation only
Manufacturer
Manufacturer No
XFHCL4-5R6M
Packaging
Tape & Reel (TR)
Description
FIXED IND 5.6UH 11A 17 MOHM SMD
Detailed Description
5.6 µH Shielded Molded Inductor 11 A 17mOhm Max
Datasheet
Mfr
XFMRS
Type
Molded
Series
XFHCL4
Ratings
AEC-Q200
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±20%
Inductance
5.6 µH
Mounting Type
Surface Mount
Size / Dimension
0.531" L x 0.504" W (13.50mm x 12.80mm)
DC Resistance (DCR)
17mOhm Max
Current Rating (Amps)
11 A
Height - Seated (Max)
0.197" (5.00mm)
Operating Temperature
-55°C ~ 125°C
Current - Saturation (Isat)
22A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | XFMRS |
| Type | Molded |
| Series | XFHCL4 |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 5.6 µH |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.531" L x 0.504" W (13.50mm x 12.80mm) |
| DC Resistance (DCR) | 17mOhm Max |
| Current Rating (Amps) | 11 A |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Current - Saturation (Isat) | 22A |
| Inductance Frequency - Test | 100 kHz |
