Step1: Product

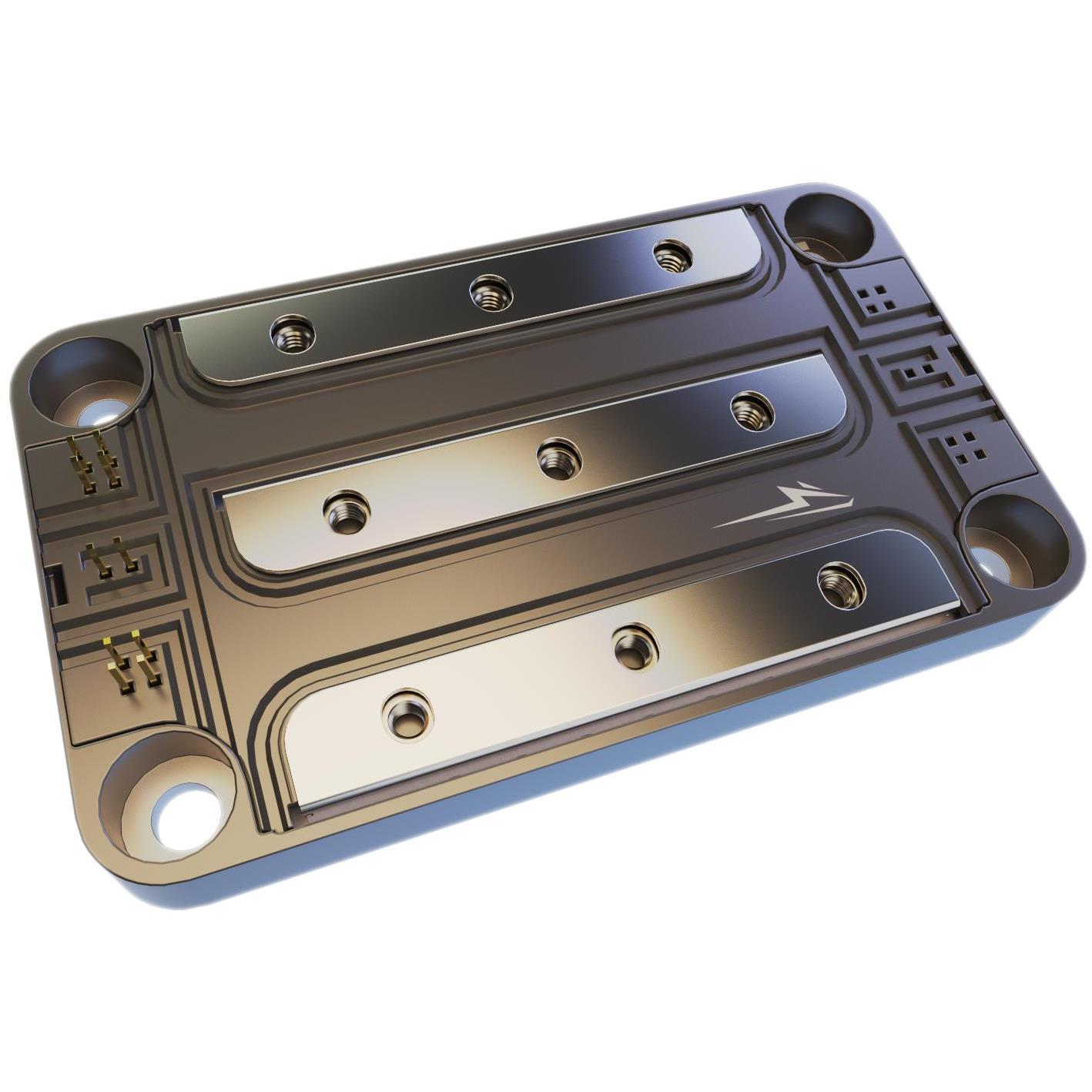

Wolfspeed, Inc. CAB500M17HM3
Image shown is a representation only
Manufacturer
Manufacturer No
CAB500M17HM3
Package
Module
Packaging
Bulk
Description
MOSFET 2N-CH 1700V 653A MODULE
Detailed Description
Mosfet Array 1700V (1.7kV) 653A (Tc) Chassis Mount Module
DataSheet
Packaging
Bulk
Technology
Silicon Carbide (SiC)
Part Status
Active
Manufacturer
Wolfspeed, Inc.
Configuration
2 N-Channel (Dual)
Mounting Type
Chassis Mount
Package / Case
Module
Vgs(th) (Max) @ Id
3.6V @ 203mA
Base Product Number
CAB500
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
2.6mOhm @ 500A, 15V
Supplier Device Package
Module
Gate Charge (Qg) (Max) @ Vgs
1992nC @ 15V
Drain to Source Voltage (Vdss)
1700V (1.7kV)
Input Capacitance (Ciss) (Max) @ Vds
64900pF @ 1200V
Current - Continuous Drain (Id) @ 25°C
653A (Tc)
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Technology | Silicon Carbide (SiC) |
| Part Status | Active |
| Manufacturer | Wolfspeed, Inc. |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 3.6V @ 203mA |
| Base Product Number | CAB500 |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 500A, 15V |
| Supplier Device Package | Module |
| Gate Charge (Qg) (Max) @ Vgs | 1992nC @ 15V |
| Drain to Source Voltage (Vdss) | 1700V (1.7kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 64900pF @ 1200V |
| Current - Continuous Drain (Id) @ 25°C | 653A (Tc) |
