Step1: Product
Wolfspeed, Inc. C3M0350120J-TR

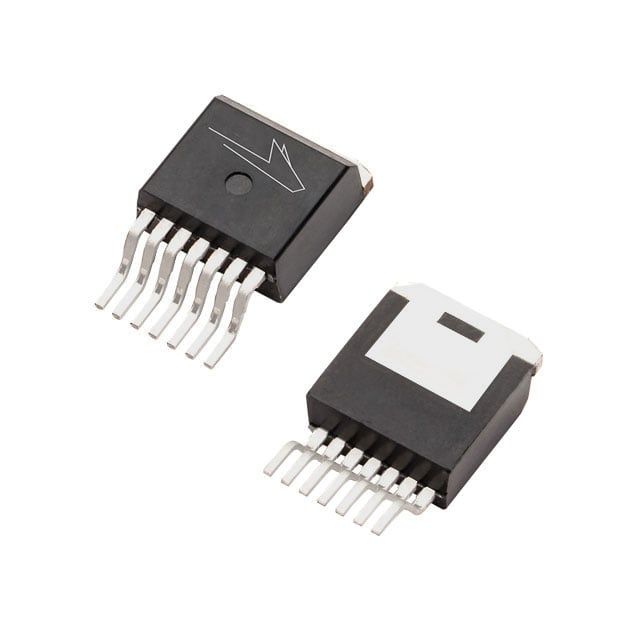

Image shown is a representation only
Manufacturer
Manufacturer No
C3M0350120J-TR
Package
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SIC, MOSFET, 350M,1200V, TO-263-
Detailed Description
N-Channel 1200 V 7.2A (Tc) 40.8W (Tc) Surface Mount TO-263-7
DataSheet
Mfr
Wolfspeed, Inc.
Series
C3M™
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
+15V, -4V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Vgs(th) (Max) @ Id
3.6V @ 1mA
Base Product Number
C3M0350120
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
455mOhm @ 3.6A, 15V
Power Dissipation (Max)
40.8W (Tc)
Supplier Device Package
TO-263-7
Gate Charge (Qg) (Max) @ Vgs
13 nC @ 15 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
345 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)
15V
Current - Continuous Drain (Id) @ 25°C
7.2A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Wolfspeed, Inc. |
| Series | C3M™ |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | +15V, -4V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Base Product Number | C3M0350120 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 455mOhm @ 3.6A, 15V |
| Power Dissipation (Max) | 40.8W (Tc) |
| Supplier Device Package | TO-263-7 |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 15 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 345 pF @ 1000 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Current - Continuous Drain (Id) @ 25°C | 7.2A (Tc) |
