Step1: Product

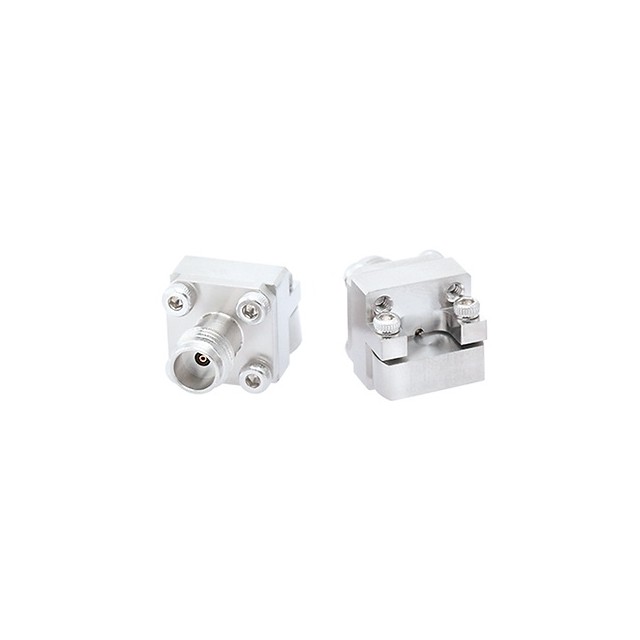

WITHWAVE CO LTD EL01FS002
Image shown is a representation only
Manufacturer
Manufacturer No
EL01FS002
Packaging
Bulk
Description
END LAUNCH 1.85 MM CONNECTOR, DC
Detailed Description
1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
DataSheet
Mfr
WITHWAVE CO LTD
Features
Mounting Hardware
Impedance
50 Ohms
Packaging
Bulk
Part Status
Active
Body Material
Stainless Steel
Housing Color
Silver
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
1.85mm
Frequency - Max
67 GHz
Number of Ports
1
Shield Termination
Screw
Base Product Number
EL01F
Contact Termination
Compression
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | WITHWAVE CO LTD |
| Features | Mounting Hardware |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | 1.85mm |
| Frequency - Max | 67 GHz |
| Number of Ports | 1 |
| Shield Termination | Screw |
| Base Product Number | EL01F |
| Contact Termination | Compression |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
