Step1: Product

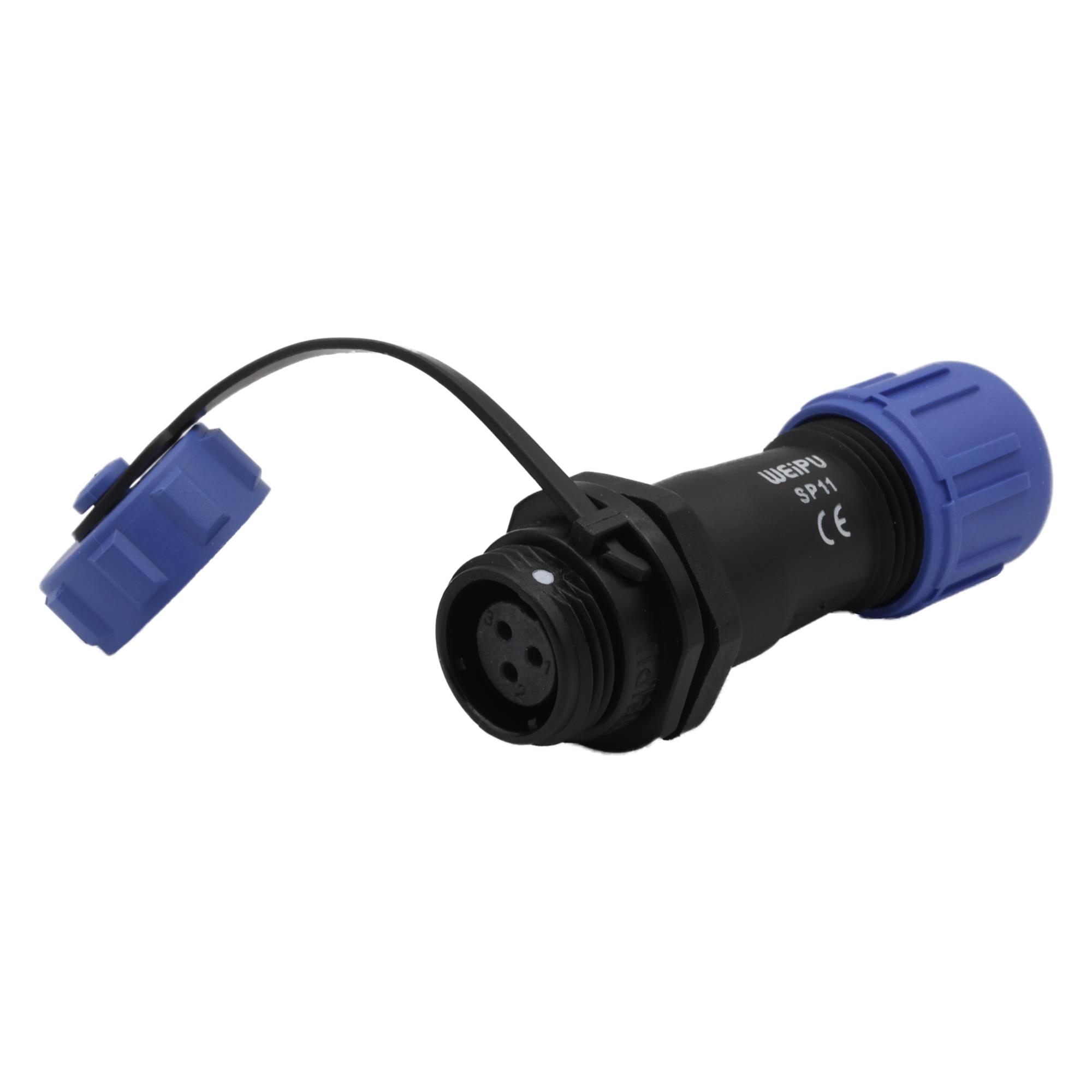

Weipu Connector SP1111/S3II-C
Image shown is a representation only
Manufacturer
Manufacturer No
SP1111/S3II-C
Packaging
Bulk
Description
CONN RCPT FEMALE 3P SOLDER
Detailed Description
3 Position Circular Connector Receptacle, Female Sockets Solder
DataSheet
Mfr
Weipu Connector
Color
Black, Blue
Series
SP
Features
IP68 Protective Cap (Cover)
Packaging
Bulk
Shielding
Unshielded
Part Status
Active
Termination
Solder
Cable Opening
0.157" ~ 0.256" (4.00mm ~ 6.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Polycarbonate (PC), Nylon 6/6
Voltage Rating
180VAC
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Brass
Primary Material
Plastic
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
3
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Weipu Connector |
| Color | Black, Blue |
| Series | SP |
| Features | IP68 Protective Cap (Cover) |
| Packaging | Bulk |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder |
| Cable Opening | 0.157" ~ 0.256" (4.00mm ~ 6.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Polycarbonate (PC), Nylon 6/6 |
| Voltage Rating | 180VAC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Brass |
| Primary Material | Plastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 3 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
