Weidmüller 2747030000

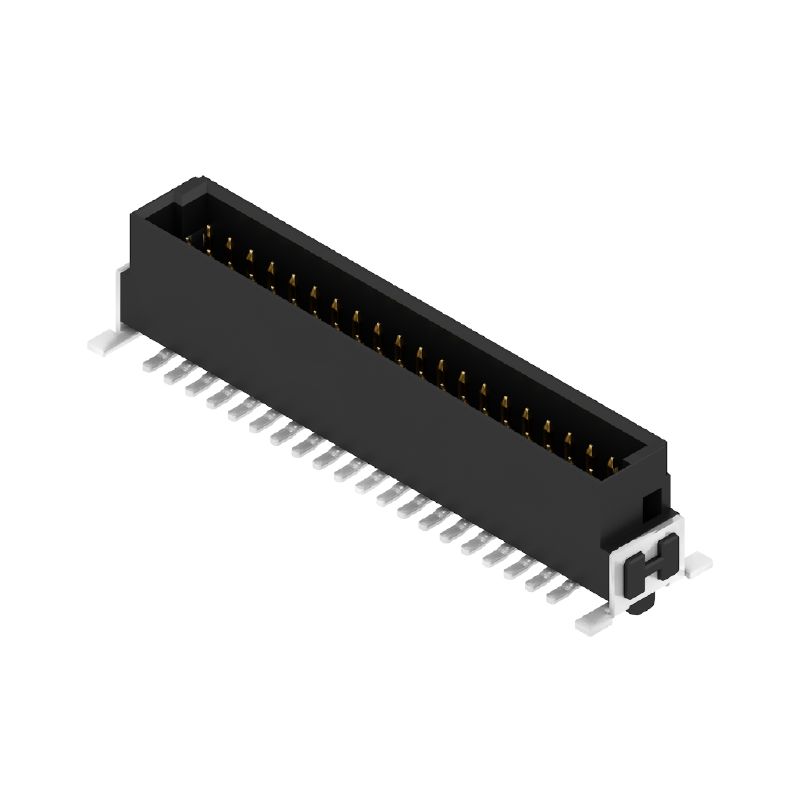

Image shown is a representation only
Manufacturer
Manufacturer No
2747030000
Packaging
Box
Description
FMH1 S1/40V F1 B RL
Detailed Description
Connector Header Surface Mount 40 position 0.050" (1.27mm)
DataSheet
Mfr
Weidmüller
Style
Board to Cable/Wire
Series
Omnimate FMH1
Features
Board Guide, Pick and Place, Solder Retention
Packaging
Box
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
150V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.260" (6.60mm)
Ingress Protection
IP20
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
40
Row Spacing - Mating
0.050" (1.27mm)
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
1.97µin (0.050µm)
| Attribute | Value |
|---|---|
| Mfr | Weidmüller |
| Style | Board to Cable/Wire |
| Series | Omnimate FMH1 |
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 150V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.260" (6.60mm) |
| Ingress Protection | IP20 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 40 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
