Step1: Product
Weidmüller 2423030000

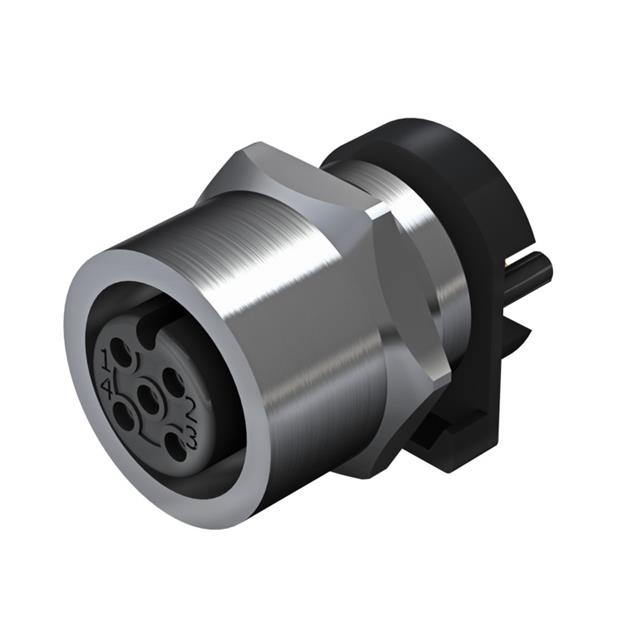

Image shown is a representation only
Manufacturer
Manufacturer No
2423030000
Packaging
Box
Description
CIRCULAR PLUG CONNECTOR, M12, NU
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
Mfr
Weidmüller
Color
Silver
Series
SAI
Features
Board Guide, Ground
Packaging
Box
Shielding
Shielded
Orientation
A
Termination
Solder
Shell Finish
Nickel
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Pull
Shell Material
Copper Zinc
Voltage Rating
60V
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
SAIE-M12
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Weidmüller |
| Color | Silver |
| Series | SAI |
| Features | Board Guide, Ground |
| Packaging | Box |
| Shielding | Shielded |
| Orientation | A |
| Termination | Solder |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Copper Zinc |
| Voltage Rating | 60V |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | SAIE-M12 |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
