Step1: Product
Weidmüller 1170030000

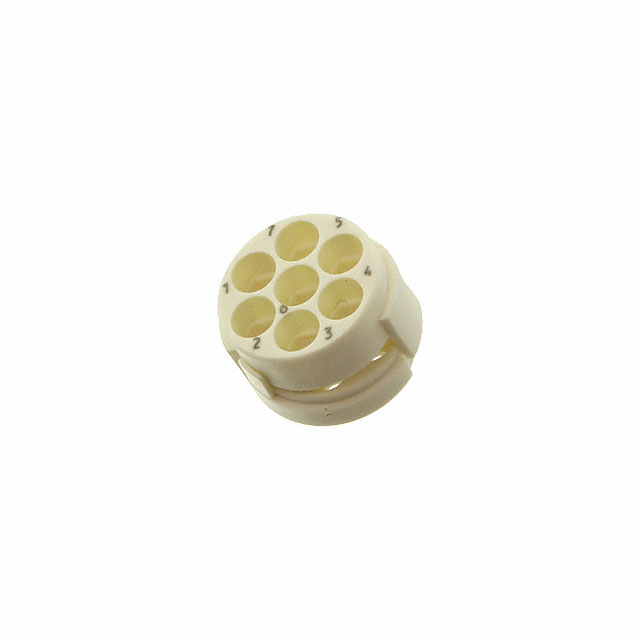

Image shown is a representation only
Manufacturer
Manufacturer No
1170030000
Packaging
Bulk
Description
CONN MALE INSERT 7POS GOLD CRIMP
Detailed Description
7 Position Circular Connector Insert
DataSheet
Note
Contacts Sold Separately; Insert Only, Requires Shell
Type
For Male Pins
Series
SAI
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Contact Size
2.0mm
Contact Type
Crimp
Manufacturer
Weidmüller
Connector Type
Insert
Insert Material
Thermoplastic
Base Product Number
SAI-M23
Number of Positions
7
Shell Size - Insert
M23-7
Operating Temperature
-40°C ~ 125°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately; Insert Only, Requires Shell |
| Type | For Male Pins |
| Series | SAI |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Contact Size | 2.0mm |
| Contact Type | Crimp |
| Manufacturer | Weidmüller |
| Connector Type | Insert |
| Insert Material | Thermoplastic |
| Base Product Number | SAI-M23 |
| Number of Positions | 7 |
| Shell Size - Insert | M23-7 |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
