Step1: Product

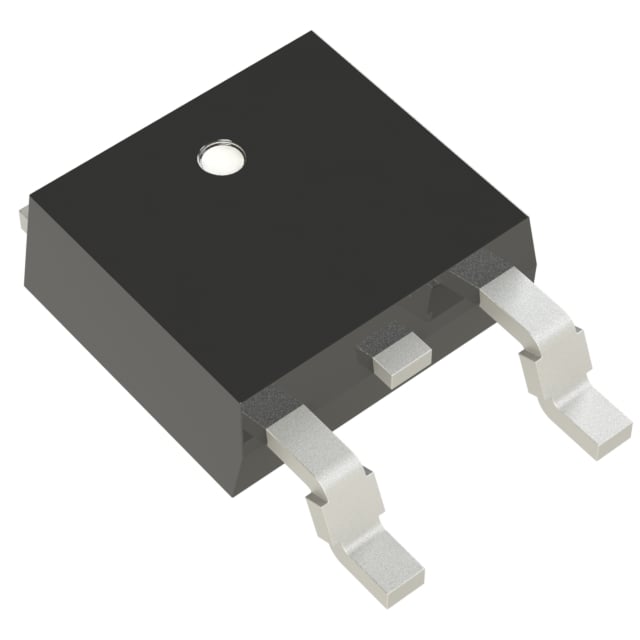

WeEn Semiconductors WND08P16DJ
Image shown is a representation only
Manufacturer
Manufacturer No
WND08P16DJ
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIODE STANDARD 1600V 8A DPAK
Detailed Description
Diode 1600 V 8A Surface Mount DPAK
DataSheet
Mfr
WeEn Semiconductors
Speed
Standard Recovery >500ns, > 200mA (Io)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Standard
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Base Product Number
WND08
Supplier Device Package
DPAK
Current - Reverse Leakage @ Vr
50 µA @ 1600 V
Voltage - DC Reverse (Vr) (Max)
1600 V
Current - Average Rectified (Io)
8A
Operating Temperature - Junction
150°C
Voltage - Forward (Vf) (Max) @ If
1.25 V @ 8 A
| Attribute | Value |
|---|---|
| Mfr | WeEn Semiconductors |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | WND08 |
| Supplier Device Package | DPAK |
| Current - Reverse Leakage @ Vr | 50 µA @ 1600 V |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Current - Average Rectified (Io) | 8A |
| Operating Temperature - Junction | 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 8 A |
