WeEn Semiconductors ESDHD05UFX

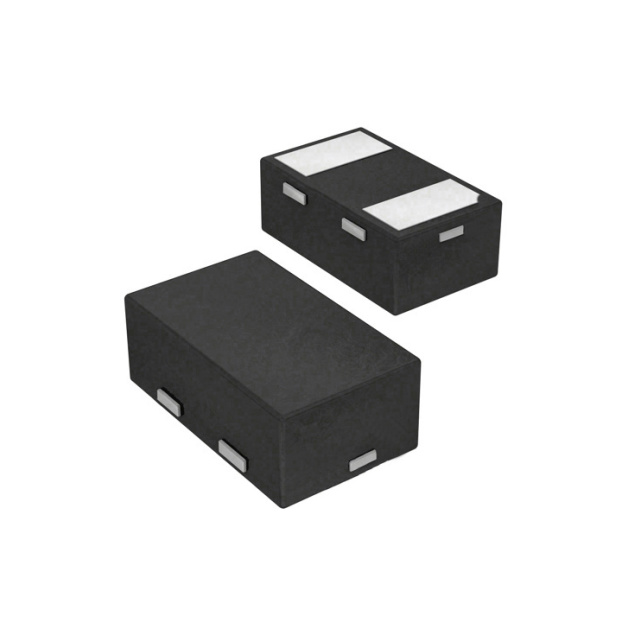

Image shown is a representation only
Manufacturer
Manufacturer No
ESDHD05UFX
Package
0402 (1006 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 5VWM 16VC DFN10062
Detailed Description
16V Clamp 20A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006-2
DataSheet
Mfr
WeEn Semiconductors
Type
Zener
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0402 (1006 Metric)
Power - Peak Pulse
320W
Base Product Number
ESDHD05
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Capacitance @ Frequency
150pF @ 1MHz
Supplier Device Package
DFN1006-2
Unidirectional Channels
1
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
16V
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
20A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | WeEn Semiconductors |
| Type | Zener |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Power - Peak Pulse | 320W |
| Base Product Number | ESDHD05 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Capacitance @ Frequency | 150pF @ 1MHz |
| Supplier Device Package | DFN1006-2 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 16V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 20A (8/20µs) |
