Step1: Product

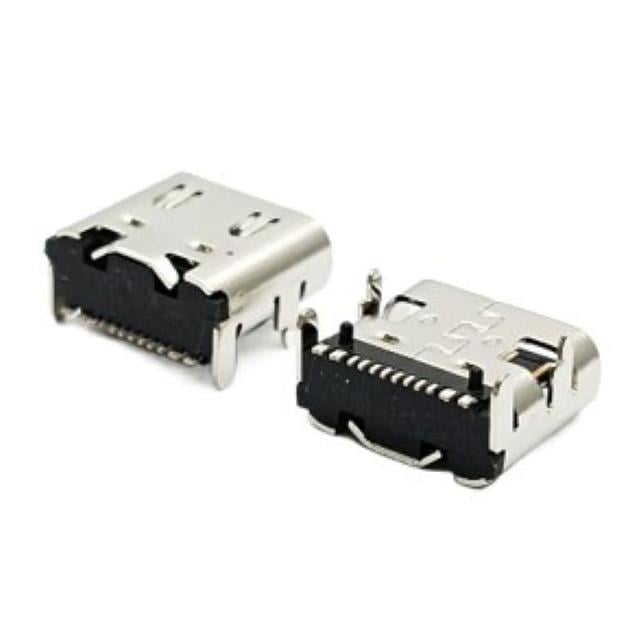

Walta D13-0824-16007
Image shown is a representation only
Manufacturer
Manufacturer No
D13-0824-16007
Packaging
Tape & Reel (TR)
Description
USB Type C female 16P SMT
Detailed Description
USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 16 Position Surface Mount, Through Hole
DataSheet
Gender
Receptacle
Series
*
Packaging
Tape & Reel (TR)
Part Status
Active
Termination
PC Board, Solder
Manufacturer
Walta
Mounting Type
Surface Mount, Through Hole
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Specifications
USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Voltage - Rated
100VAC
Mounting Feature
Horizontal
Number of Contacts
16
Current Rating (Amps)
0.25A, 1.25A, 5A
Operating Temperature
-20°C ~ 60°C
Shell/Shielding Material
Steel (SUS)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | * |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | PC Board, Solder |
| Manufacturer | Walta |
| Mounting Type | Surface Mount, Through Hole |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Voltage - Rated | 100VAC |
| Mounting Feature | Horizontal |
| Number of Contacts | 16 |
| Current Rating (Amps) | 0.25A, 1.25A, 5A |
| Operating Temperature | -20°C ~ 60°C |
| Shell/Shielding Material | Steel (SUS) |
| Material Flammability Rating | UL94 V-0 |
