Step1: Product
Walsin Technology Corporation RFFPA125015IMMB901

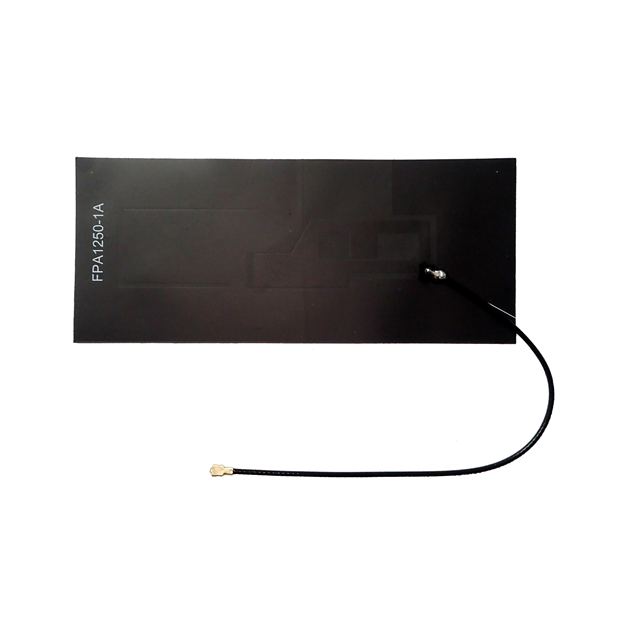

Image shown is a representation only
Manufacturer
Manufacturer No
RFFPA125015IMMB901
Packaging
Bulk
Description
RF ANT 6GHZ LTE 150MM PCB IPEX
Detailed Description
RF ANTENNA 5G, 6G, LTE PCB Trace I-PEX Surface Mount
DataSheet
Gain
2.78dBi, 3.52dBi, 4.25dBi, 3.88dBi, 3.42dBi, 4.08dBi, 4.88dBi
VSWR
2, 3
Features
Cable - 150mm
Packaging
Bulk
Part Status
Active
Return Loss
-10dB
Termination
I-PEX
Antenna Type
PCB Trace
Applications
5G, 6G, LTE
Manufacturer
Walsin Technology Corporation
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 4.8GHz ~ 6GHz
Number of Bands
7
RF Family/Standard
Cellular
Frequency (Center/Band)
829MHz, 1.4125GHz, 1.575GHz, 1.94GHz, 2.55GHz, 3.5GHz, 5.6GHz
| Attribute | Value |
|---|---|
| Gain | 2.78dBi, 3.52dBi, 4.25dBi, 3.88dBi, 3.42dBi, 4.08dBi, 4.88dBi |
| VSWR | 2, 3 |
| Features | Cable - 150mm |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -10dB |
| Termination | I-PEX |
| Antenna Type | PCB Trace |
| Applications | 5G, 6G, LTE |
| Manufacturer | Walsin Technology Corporation |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 4.8GHz ~ 6GHz |
| Number of Bands | 7 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 829MHz, 1.4125GHz, 1.575GHz, 1.94GHz, 2.55GHz, 3.5GHz, 5.6GHz |
