Step1: Product

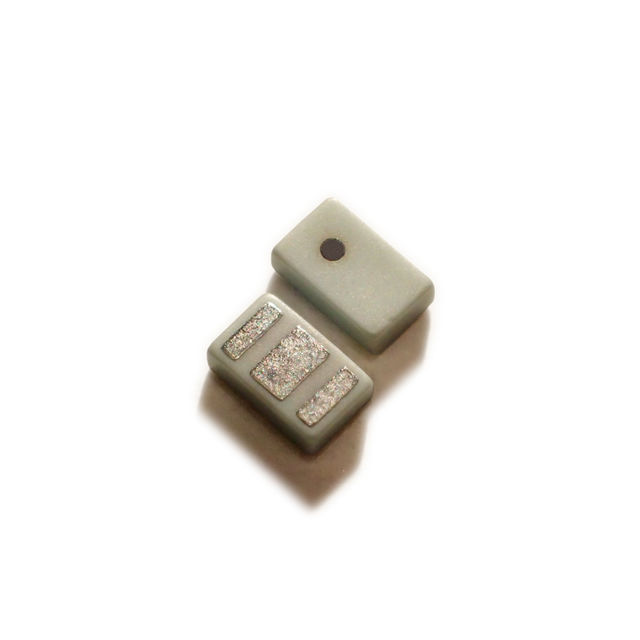

Walsin Technology Corporation RFBPF20123G7W2T
Image shown is a representation only
Manufacturer
Manufacturer No
RFBPF20123G7W2T
Package
0805 (2012 Metric), 3 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF FILTER BAND PASS 3.75GHZ 0805
Detailed Description
3.75GHz Center Frequency Band Pass RF Filter (Radio Frequency) 900MHz Bandwidth 2dB 0805 (2012 Metric), 3 PC Pad
DataSheet
Series
RFBPF
Bandwidth
900MHz
Frequency
3.75GHz Center
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Band Pass
Part Status
Active
Height (Max)
0.028" (0.70mm)
Manufacturer
Walsin Technology Corporation
Mounting Type
Surface Mount
Insertion Loss
2dB
Package / Case
0805 (2012 Metric), 3 PC Pad
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
| Attribute | Value |
|---|---|
| Series | RFBPF |
| Bandwidth | 900MHz |
| Frequency | 3.75GHz Center |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Band Pass |
| Part Status | Active |
| Height (Max) | 0.028" (0.70mm) |
| Manufacturer | Walsin Technology Corporation |
| Mounting Type | Surface Mount |
| Insertion Loss | 2dB |
| Package / Case | 0805 (2012 Metric), 3 PC Pad |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
