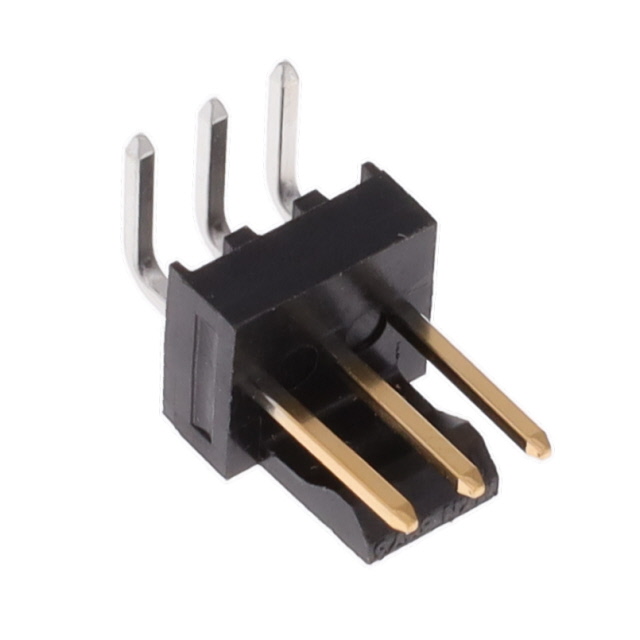

Waldom 1718574003
Image shown is a representation only
Manufacturer
Manufacturer No
1718574003
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER R/A 3POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
DataSheet
Mfr
Waldom
Style
Board to Board or Cable
Series
KK254, 171857
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 1 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Medical, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.250" (6.35mm)
Base Product Number
171857
Insulation Material
Polyamide (PA), Nylon
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.100" (2.54mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.265" (6.73mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-2
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | Waldom |
| Style | Board to Board or Cable |
| Series | KK254, 171857 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 1 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.250" (6.35mm) |
| Base Product Number | 171857 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.265" (6.73mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
