Step1: Product
Wakefield Thermal Solutions 677-20ABPE

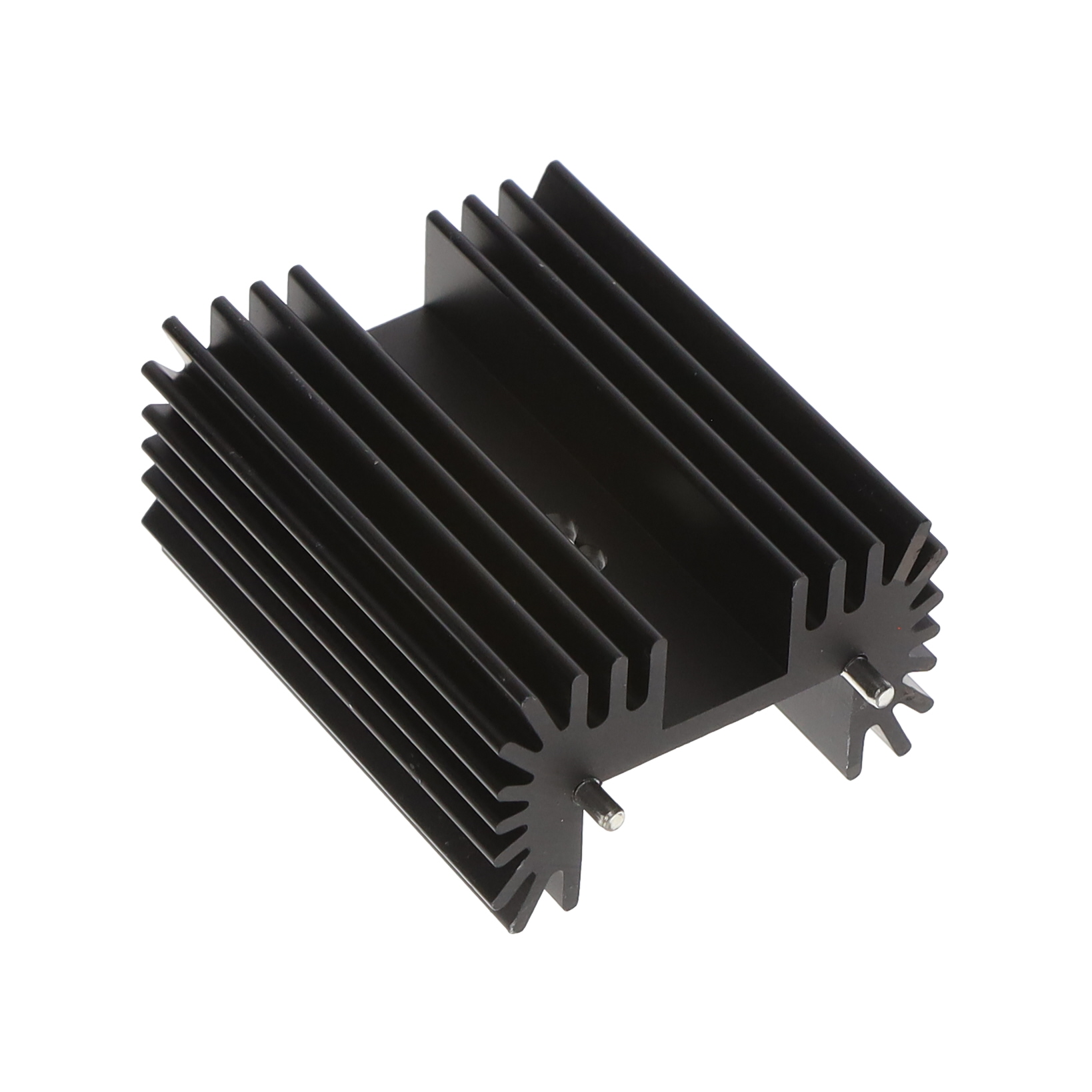

Image shown is a representation only
Manufacturer
Manufacturer No
677-20ABPE
Packaging
Bulk
Description
HEATSINK MULTIWATT 2.0" BLK
Detailed Description
Heat Sink TO-218, TO-220, TO-247, Multiwatt Aluminum 6.0W @ 40°C Board Level, Vertical
Datasheet
Mfr
Wakefield Thermal Solutions
Type
Board Level, Vertical
Shape
Rectangular, Fins
Width
1.650" (41.91mm)
Length
2.000" (50.80mm)
Series
677
Material
Aluminum
Packaging
Bulk
Fin Height
1.000" (25.40mm)
Package Cooled
TO-218, TO-220, TO-247, Multiwatt
Material Finish
Black Anodized
Attachment Method
Bolt On and PC Pin
Base Product Number
677-20
Thermal Resistance @ Natural
6.70°C/W
Power Dissipation @ Temperature Rise
6.0W @ 40°C
Thermal Resistance @ Forced Air Flow
2.50°C/W @ 200 LFM
| Attribute | Value |
|---|---|
| Mfr | Wakefield Thermal Solutions |
| Type | Board Level, Vertical |
| Shape | Rectangular, Fins |
| Width | 1.650" (41.91mm) |
| Length | 2.000" (50.80mm) |
| Series | 677 |
| Material | Aluminum |
| Packaging | Bulk |
| Fin Height | 1.000" (25.40mm) |
| Package Cooled | TO-218, TO-220, TO-247, Multiwatt |
| Material Finish | Black Anodized |
| Attachment Method | Bolt On and PC Pin |
| Base Product Number | 677-20 |
| Thermal Resistance @ Natural | 6.70°C/W |
| Power Dissipation @ Temperature Rise | 6.0W @ 40°C |
| Thermal Resistance @ Forced Air Flow | 2.50°C/W @ 200 LFM |
