Step1: Product
WAGO Corporation 832-1206/334-000
Image shown is a representation only
Manufacturer
Manufacturer No
832-1206/334-000
Packaging
Box
Description
TERM BLOCK PLUG 6POS 10.16MM
Detailed Description

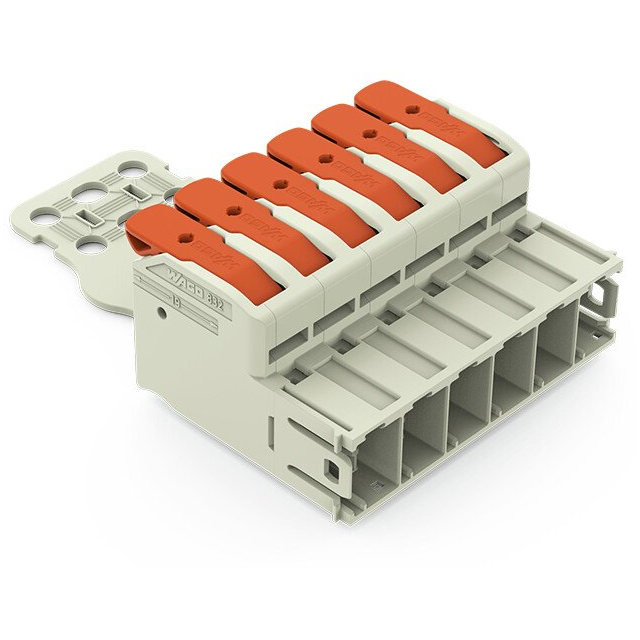

6 Position Terminal Block Plug, Male Pins 0.400" (10.16mm) 180° Free Hanging (In-Line)
Datasheet
Type
Plug, Male Pins
Color
Gray
Pitch
0.400" (10.16mm)
Series
MCSMAXI 16
Features
Strain Relief
Packaging
Box
Current - UL
85 A
Manufacturer
WAGO Corporation
Voltage - UL
600 V
Current - IEC
76A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
1 kV
Plug Wire Entry
180°
Contact Material
Electrolytic Copper
Housing Material
Polybutylene Terephthalate (PBT)
Number of Levels
1
Insulation Height
1.146" (29.10mm)
Termination Style
Screwless - Push-In Spring
Wire Strip Length
18-20mm
Number of Positions
6
Positions Per Level
6
Contact Mating Finish
Silver
Operating Temperature
-60°C ~ 120°C
Wire Gauge or Range - AWG
4-18 AWG
Wire Gauge or Range - mm²
0.75-16mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Male Pins |
| Color | Gray |
| Pitch | 0.400" (10.16mm) |
| Series | MCSMAXI 16 |
| Features | Strain Relief |
| Packaging | Box |
| Current - UL | 85 A |
| Manufacturer | WAGO Corporation |
| Voltage - UL | 600 V |
| Current - IEC | 76A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 1 kV |
| Plug Wire Entry | 180° |
| Contact Material | Electrolytic Copper |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Levels | 1 |
| Insulation Height | 1.146" (29.10mm) |
| Termination Style | Screwless - Push-In Spring |
| Wire Strip Length | 18-20mm |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Contact Mating Finish | Silver |
| Operating Temperature | -60°C ~ 120°C |
| Wire Gauge or Range - AWG | 4-18 AWG |
| Wire Gauge or Range - mm² | 0.75-16mm² |
| Material Flammability Rating | UL94 V-0 |
