Step1: Product

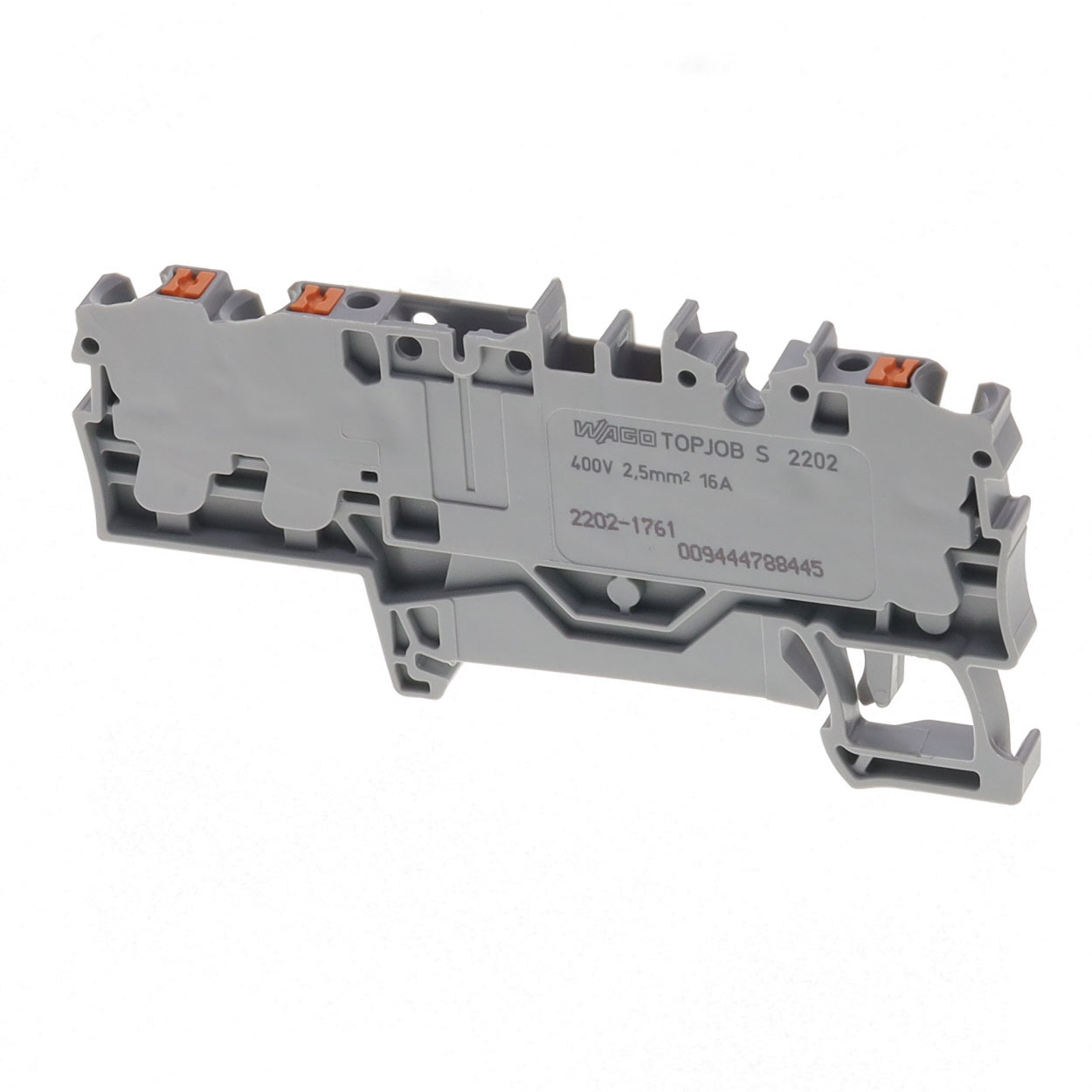

WAGO Corporation 2202-1761
Image shown is a representation only
Manufacturer
Manufacturer No
2202-1761
Packaging
Box
Description
3-CONDUCTOR CARRIER TERMINAL BLO
Detailed Description
Terminal Block Connector 3 Position Isolated Gray 12-22 AWG
DataSheet
Type
Isolated
Color
Gray
Series
TOPJOB®S
Packaging
Box
Part Status
Active
Current - UL
15 A
Manufacturer
WAGO Corporation
Voltage - UL
300V
Current - IEC
16 A
Voltage - IEC
400V
Disconnect Type
Disconnect Tab
Number of Levels
1
Stripping Length
10mm ~ 12mm
Terminal - Width
5.2mm
Termination Style
Push In, Spring
Number of Positions
3
Material - Insulation
Polyamide (PA66), Nylon 6/6
Wire Gauge or Range - AWG
12-22 AWG
Wire Gauge or Range - mm²
0.25-4mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Isolated |
| Color | Gray |
| Series | TOPJOB®S |
| Packaging | Box |
| Part Status | Active |
| Current - UL | 15 A |
| Manufacturer | WAGO Corporation |
| Voltage - UL | 300V |
| Current - IEC | 16 A |
| Voltage - IEC | 400V |
| Disconnect Type | Disconnect Tab |
| Number of Levels | 1 |
| Stripping Length | 10mm ~ 12mm |
| Terminal - Width | 5.2mm |
| Termination Style | Push In, Spring |
| Number of Positions | 3 |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 0.25-4mm² |
| Material Flammability Rating | UL94 V-0 |
