Step1: Product

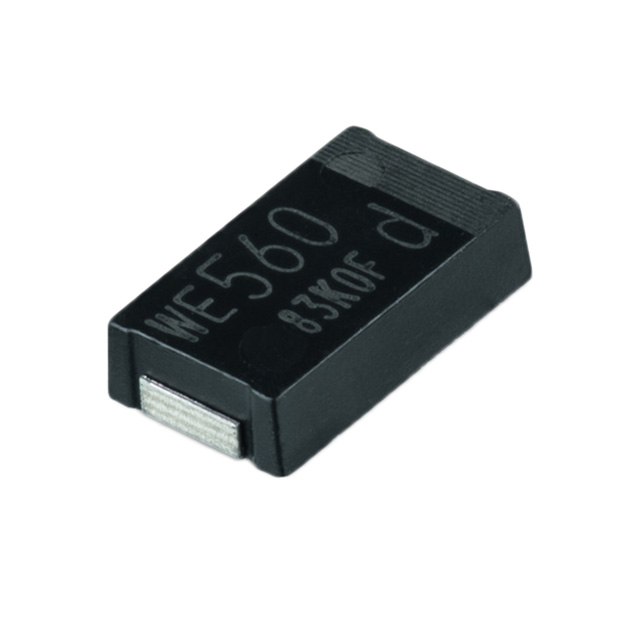

Würth Elektronik 875016319003
Image shown is a representation only
Manufacturer
Manufacturer No
875016319003
Package
2917 (7343 Metric)
Packaging
Tape & Reel (TR)
Description
CAP ALUM POLY 390UF 20% 2.5V SMD
Detailed Description
390 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 15mOhm 2000 Hrs @ 105°C
DataSheet
Type
Polymer
Series
WCAP-PHGP
Packaging
Tape & Reel (TR)
Tolerance
±20%
Capacitance
390 µF
Part Status
Active
Applications
General Purpose
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Package / Case
2917 (7343 Metric)
Voltage - Rated
2.5 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)
0.079" (2.00mm)
Operating Temperature
-55°C ~ 105°C
Surface Mount Land Size
0.287" L x 0.169" W (7.30mm x 4.30mm)
Ripple Current @ High Frequency
5.1 A @ 100 kHz
ESR (Equivalent Series Resistance)
15mOhm
| Attribute | Value |
|---|---|
| Type | Polymer |
| Series | WCAP-PHGP |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±20% |
| Capacitance | 390 µF |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Voltage - Rated | 2.5 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Ripple Current @ High Frequency | 5.1 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 15mOhm |
