Step1: Product
Würth Elektronik 74485542101

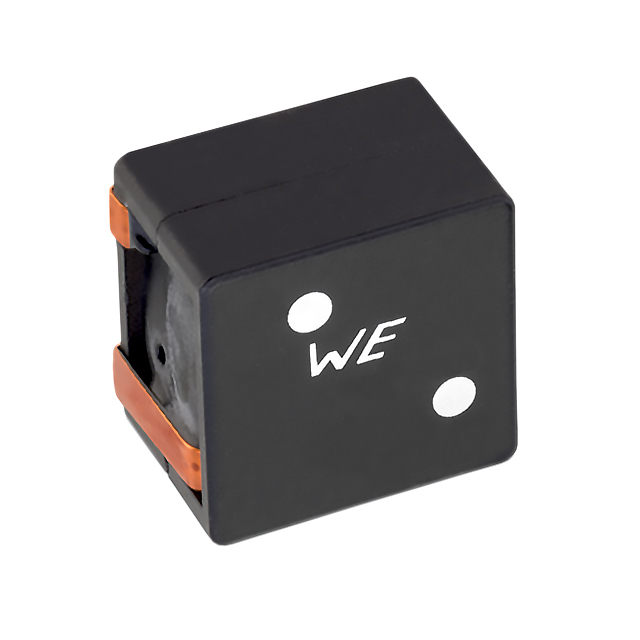

Image shown is a representation only
Manufacturer
Manufacturer No
74485542101
Package
4-SMD
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 10UH SMD
Detailed Description
Shielded 2 Coil Inductor Array Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 11mOhm DC Resistance (DCR) - Parallel 11.5 A 4-SMD
Datasheet
Height
0.531" (13.50mm)
Series
WE-CFWI
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Package / Case
4-SMD
Number of Coils
2
Size / Dimension
0.827" L x 0.728" W (21.00mm x 18.50mm)
Operating Temperature
-40°C ~ 150°C
Current Rating - Parallel
11.5 A
Current Saturation - Parallel
22 A
DC Resistance (DCR) - Parallel
11mOhm
Inductance - Connected In Parallel
10 µH
| Attribute | Value |
|---|---|
| Height | 0.531" (13.50mm) |
| Series | WE-CFWI |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Number of Coils | 2 |
| Size / Dimension | 0.827" L x 0.728" W (21.00mm x 18.50mm) |
| Operating Temperature | -40°C ~ 150°C |
| Current Rating - Parallel | 11.5 A |
| Current Saturation - Parallel | 22 A |
| DC Resistance (DCR) - Parallel | 11mOhm |
| Inductance - Connected In Parallel | 10 µH |
