Step1: Product
Würth Elektronik 744824407

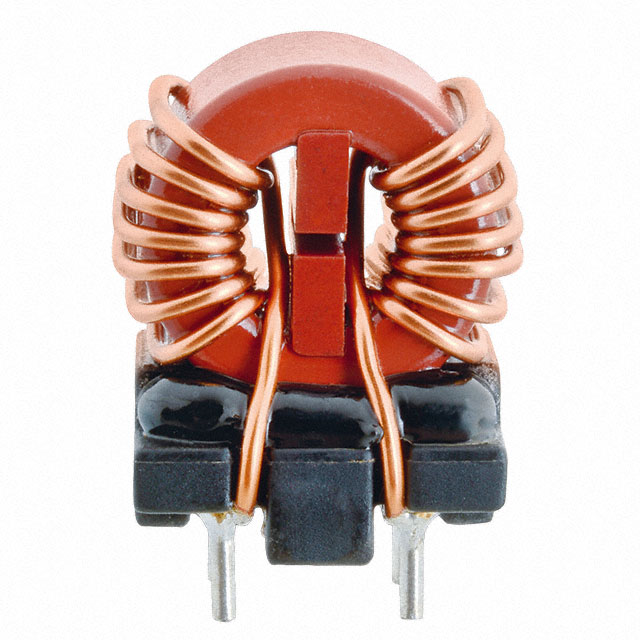

Image shown is a representation only
Manufacturer
Manufacturer No
744824407
Package
Vertical, 4 PC Pin
Packaging
Bulk
Description
CMC 7MH 3.5A 2LN TH
Detailed Description
7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 80mOhm
DataSheet
Series
WE-CMB
Packaging
Bulk
Filter Type
Power Line
Part Status
Active
Height (Max)
1.299" (33.00mm)
Manufacturer
Würth Elektronik
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Approval Agency
ENEC, VDE
Number of Lines
2
Size / Dimension
1.083" L x 0.728" W (27.50mm x 18.50mm)
Voltage Rating - AC
250V
Current Rating (Max)
3.5A
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
7 mH @ 10 kHz
DC Resistance (DCR) (Max)
80mOhm
| Attribute | Value |
|---|---|
| Series | WE-CMB |
| Packaging | Bulk |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 1.299" (33.00mm) |
| Manufacturer | Würth Elektronik |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Approval Agency | ENEC, VDE |
| Number of Lines | 2 |
| Size / Dimension | 1.083" L x 0.728" W (27.50mm x 18.50mm) |
| Voltage Rating - AC | 250V |
| Current Rating (Max) | 3.5A |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 7 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 80mOhm |
