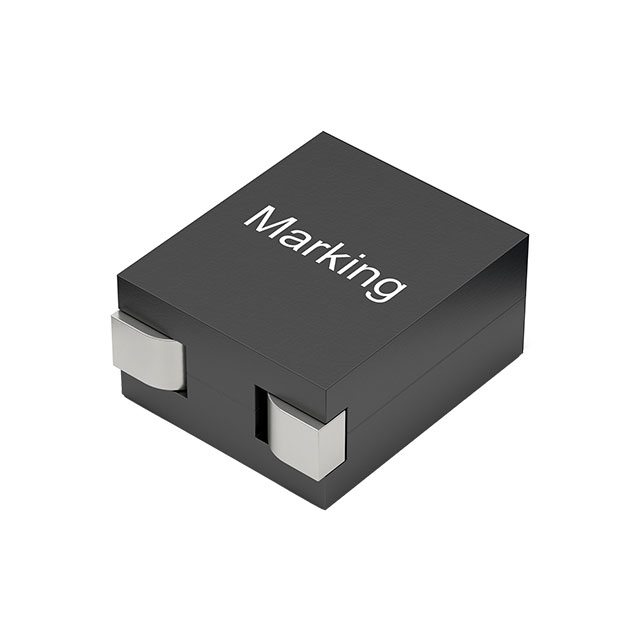

Würth Elektronik 74431323012
Image shown is a representation only
Manufacturer
Manufacturer No
74431323012
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 120NH 26A 0.7 MOHM SMD
Detailed Description
120 nH Shielded Drum Core, Wirewound Inductor 26 A 0.7mOhm Nonstandard
DataSheet
Mfr
Würth Elektronik
Type
Drum Core, Wirewound
Series
WE-HCM
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±15%
Inductance
120 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Manganese Zinc Ferrite (MnZn)
Size / Dimension
0.512" L x 0.413" W (13.00mm x 10.50mm)
Base Product Number
7443132
DC Resistance (DCR)
0.7mOhm
Current Rating (Amps)
26 A
Height - Seated (Max)
0.091" (2.30mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1323
Frequency - Self Resonant
120MHz
Current - Saturation (Isat)
47.8A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Type | Drum Core, Wirewound |
| Series | WE-HCM |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±15% |
| Inductance | 120 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Size / Dimension | 0.512" L x 0.413" W (13.00mm x 10.50mm) |
| Base Product Number | 7443132 |
| DC Resistance (DCR) | 0.7mOhm |
| Current Rating (Amps) | 26 A |
| Height - Seated (Max) | 0.091" (2.30mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1323 |
| Frequency - Self Resonant | 120MHz |
| Current - Saturation (Isat) | 47.8A |
| Inductance Frequency - Test | 100 kHz |
