Würth Elektronik 744228

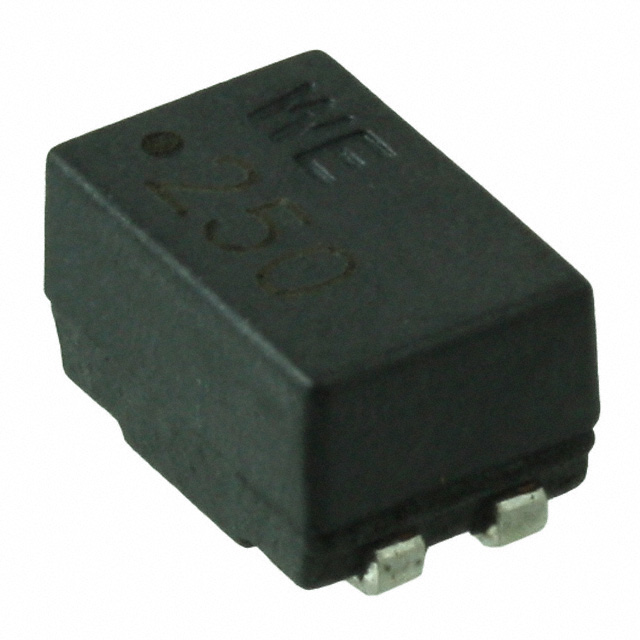

Image shown is a representation only
Manufacturer
Manufacturer No
744228
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 25UH 1A 2LN 2.8 KOHM SMD
Detailed Description
25 µH @ 1 kHz 2 Line Common Mode Choke Surface Mount 2.8 kOhms @ 45 MHz 1A DCR 120mOhm
DataSheet
Series
WE-SL2
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Power, Signal Line
Part Status
Active
Height (Max)
0.209" (5.30mm)
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.362" L x 0.236" W (9.20mm x 6.00mm)
Voltage Rating - DC
80V
Current Rating (Max)
1A
Impedance @ Frequency
2.8 kOhms @ 45 MHz
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
25 µH @ 1 kHz
DC Resistance (DCR) (Max)
120mOhm
| Attribute | Value |
|---|---|
| Series | WE-SL2 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Power, Signal Line |
| Part Status | Active |
| Height (Max) | 0.209" (5.30mm) |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.362" L x 0.236" W (9.20mm x 6.00mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 1A |
| Impedance @ Frequency | 2.8 kOhms @ 45 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 25 µH @ 1 kHz |
| DC Resistance (DCR) (Max) | 120mOhm |
