Step1: Product

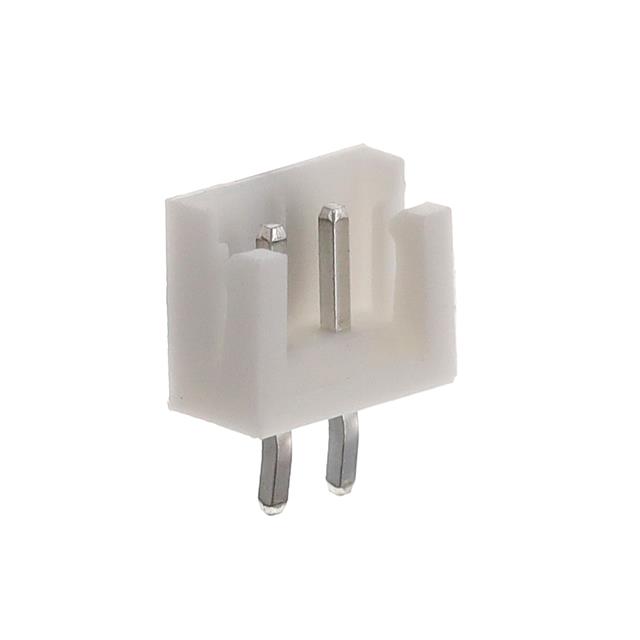

Würth Elektronik 68800211622
Image shown is a representation only
Manufacturer
Manufacturer No
68800211622
Packaging
Bag
Description
WR-WTB WIRE-TO-BOARD CONNECTORS
Detailed Description
Connector Header Through Hole 2 position 0.098" (2.50mm)
DataSheet
Mfr
Würth Elektronik
Style
Board to Cable/Wire
Series
WR-WTB
Packaging
Bag
Shrouding
Shrouded - 3 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
White
Insulation Height
0.236" (6.00mm)
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
2
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
3A
Operating Temperature
-25°C ~ 85°C
Overall Contact Length
0.362" (9.20mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.142" (3.60mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Cable/Wire |
| Series | WR-WTB |
| Packaging | Bag |
| Shrouding | Shrouded - 3 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.236" (6.00mm) |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 2 |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -25°C ~ 85°C |
| Overall Contact Length | 0.362" (9.20mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.142" (3.60mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
