Step1: Product
Würth Elektronik 68613014122

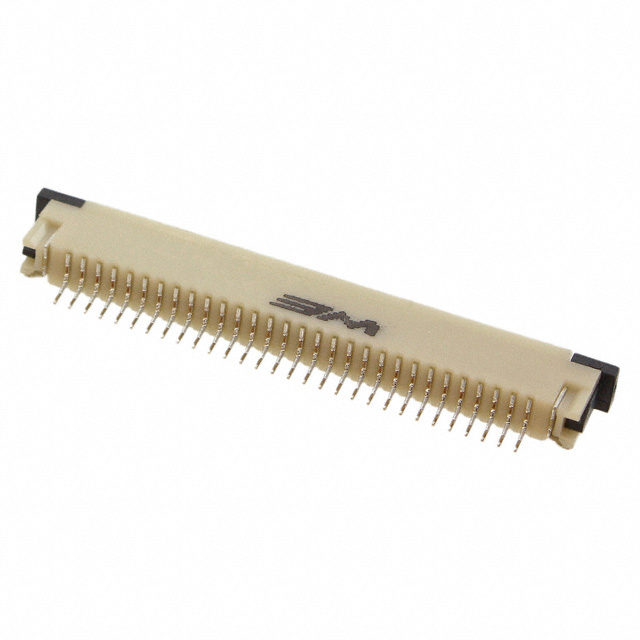

Image shown is a representation only
Manufacturer
Manufacturer No
68613014122
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC TOP 30POS 1MM R/A
Detailed Description
30 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
Pitch
0.039" (1.00mm)
Series
WR-FPC
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Würth Elektronik
Housing Color
Beige
Mating Cycles
25
Mounting Type
Surface Mount, Right Angle
Actuator Color
Brown
Cable End Type
Tapered
Contact Finish
Tin
Flat Flex Type
FPC
Voltage Rating
125V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Polyphenylene Sulfide (PPS)
Actuator Material
Polyphenylene Sulfide (PPS)
FFC, FCB Thickness
0.29mm ~ 0.34mm
Height Above Board
0.116" (2.95mm)
Number of Positions
30
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Connector/Contact Type
Contacts, Top
Contact Finish Thickness
100.0µin (2.54µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | WR-FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Würth Elektronik |
| Housing Color | Beige |
| Mating Cycles | 25 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Brown |
| Cable End Type | Tapered |
| Contact Finish | Tin |
| Flat Flex Type | FPC |
| Voltage Rating | 125V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.116" (2.95mm) |
| Number of Positions | 30 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Connector/Contact Type | Contacts, Top |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Material Flammability Rating | UL94 V-0 |
