Step1: Product

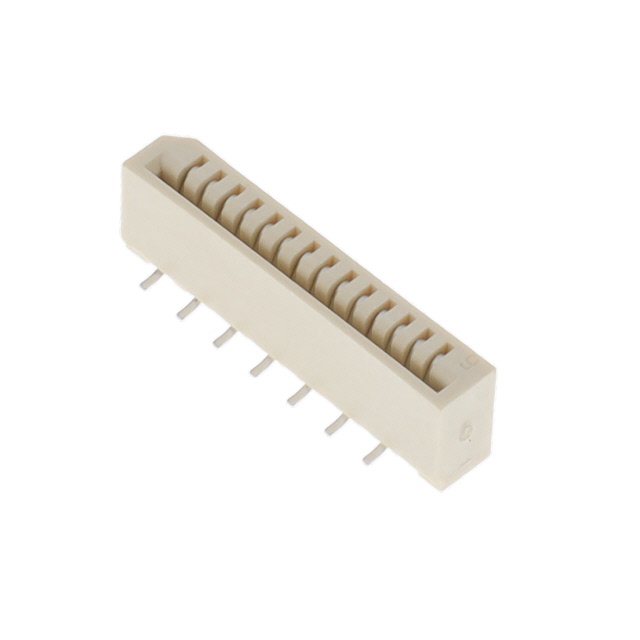

Würth Elektronik 686114188822
Image shown is a representation only
Manufacturer
Manufacturer No
686114188822
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC VERT 14POS 1MM SMD
Detailed Description
14 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Datasheet
Pitch
0.039" (1.00mm)
Series
WR-FPC
Features
Low Insertion Force (LIF), Pick and Place Cap
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Würth Elektronik
Housing Color
Ivory
Mating Cycles
20
Mounting Type
Surface Mount
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FPC
Voltage Rating
125V
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
FFC, FCB Thickness
0.29mm ~ 0.34mm
Height Above Board
0.201" (5.10mm)
Number of Positions
14
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
Contact Finish Thickness
80.0µin (2.03µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | WR-FPC |
| Features | Low Insertion Force (LIF), Pick and Place Cap |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Würth Elektronik |
| Housing Color | Ivory |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FPC |
| Voltage Rating | 125V |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.201" (5.10mm) |
| Number of Positions | 14 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Material Flammability Rating | UL94 V-0 |
