Step1: Product

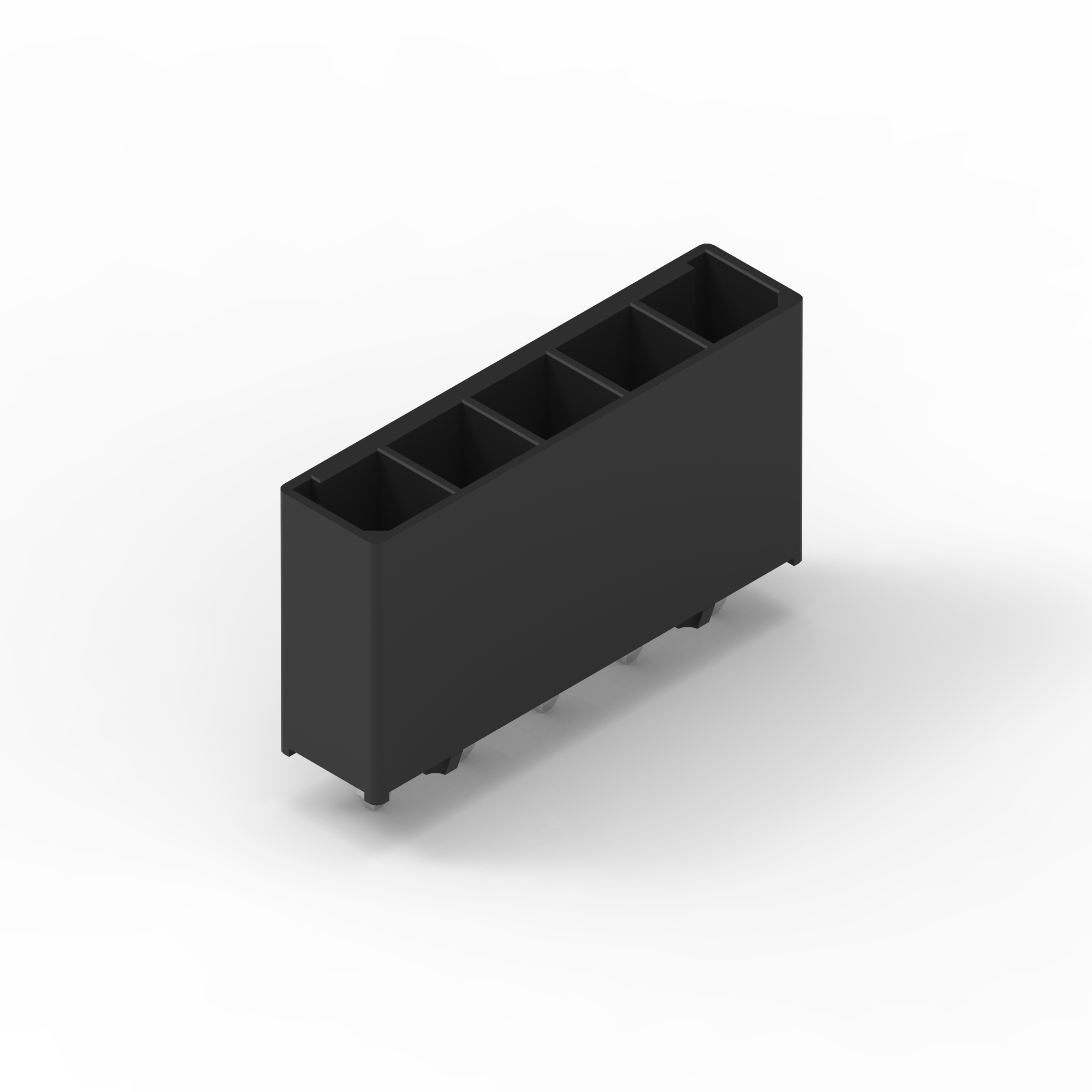

Würth Elektronik 657005140201
Image shown is a representation only
Manufacturer
Manufacturer No
657005140201
Packaging
Tray
Description
WR-MPC5 MEGA POWER CONNECTORS 5.
Detailed Description
Connector Header Through Hole 5 position 0.224" (5.70mm)
Datasheet
Mfr
Würth Elektronik
Style
Board to Cable/Wire
Series
WR-MPC5
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.224" (5.70mm)
Voltage Rating
600VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.602" (15.29mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
5
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
26A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Cable/Wire |
| Series | WR-MPC5 |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.224" (5.70mm) |
| Voltage Rating | 600VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.602" (15.29mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 5 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 26A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
