Step1: Product

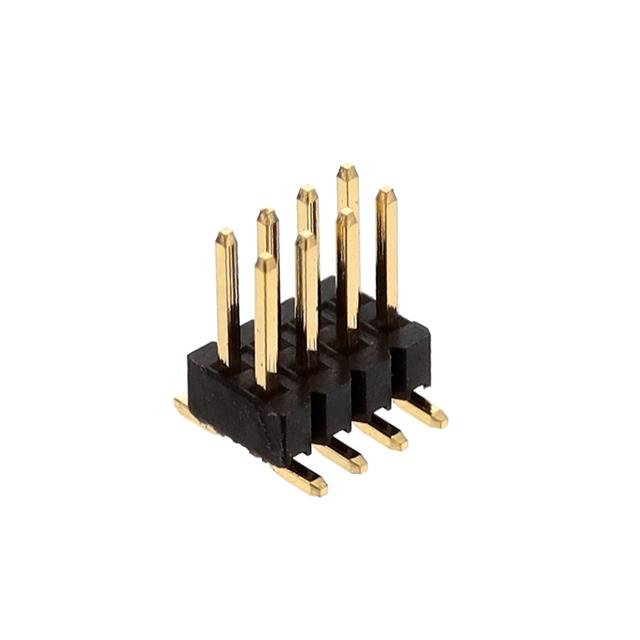

Würth Elektronik 62100821021
Image shown is a representation only
Manufacturer
Manufacturer No
62100821021
Packaging
Tube
Description
WR-PHD 1.27 MM DUAL SMT PIN HEAD
Detailed Description
Connector Header Surface Mount 8 position 0.050" (1.27mm)
DataSheet
Mfr
Würth Elektronik
Style
Board to Board
Series
WR-PHD
Packaging
Tube
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
100VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.059" (1.50mm)
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
8
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.150" (3.81mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Board |
| Series | WR-PHD |
| Packaging | Tube |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 100VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.059" (1.50mm) |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.150" (3.81mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
