Step1: Product

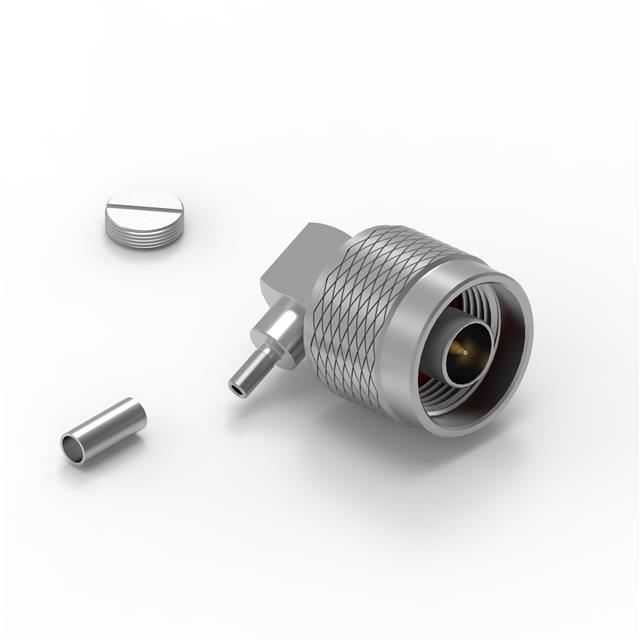

Würth Elektronik 60436022210121
Image shown is a representation only
Manufacturer
Manufacturer No
60436022210121
Packaging
Bag
Description
WR-NTYPE_CABLE CONNECTOR_RIGHT A
Detailed Description
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
DataSheet
Mfr
Würth Elektronik
Series
WR-NTYPE
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel
Cable Group
RG-58, 141, LMR-195
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
0.25dB
Connector Style
N Type
Frequency - Max
6 GHz
Number of Ports
1
Shield Termination
Crimp
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Series | WR-NTYPE |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Cable Group | RG-58, 141, LMR-195 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | 0.25dB |
| Connector Style | N Type |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
