Step1: Product
Würth Elektronik 60426522411120

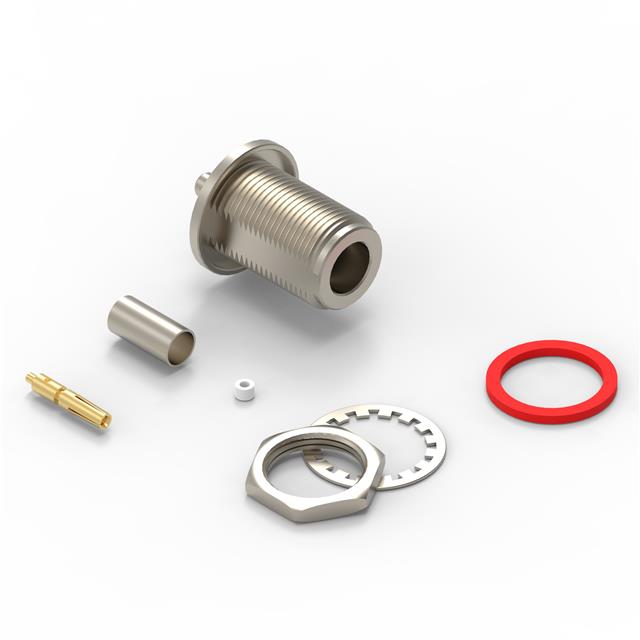

Image shown is a representation only
Manufacturer
Manufacturer No
60426522411120
Packaging
Bag
Description
WR-NTYPE_CABLE CONNECTOR_BULKHEA
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
DataSheet
Mfr
Würth Elektronik
Series
WR-NTYPE
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel
Cable Group
RG-142, 223, 400
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.2dB
Connector Style
N Type
Frequency - Max
6 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP67 - Dust Tight, Waterproof
Shield Termination
Crimp
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Series | WR-NTYPE |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Cable Group | RG-142, 223, 400 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.2dB |
| Connector Style | N Type |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shield Termination | Crimp |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
