Step1: Product

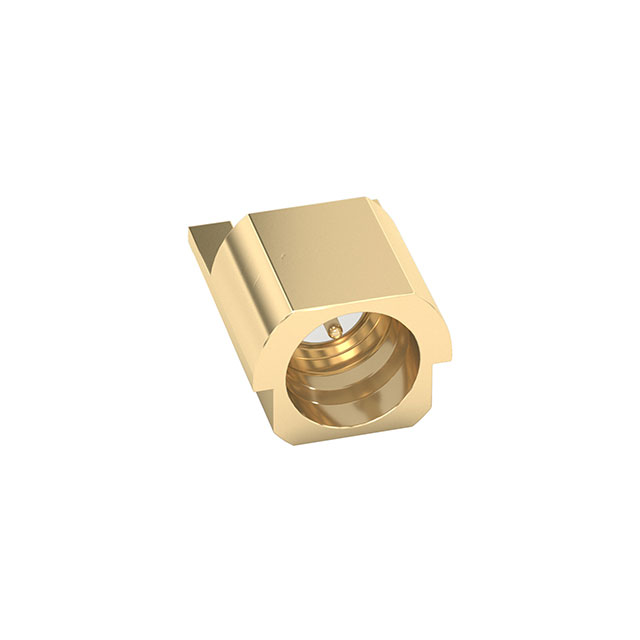

Würth Elektronik 60124202122305
Image shown is a representation only
Manufacturer
Manufacturer No
60124202122305
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
WR-SMP_PCB CONNECTOR_END LAUNCH
Detailed Description
SMP Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
Datasheet
Mfr
Würth Elektronik
Series
WR-SMP
Features
Limited Detent
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Finish
Gold
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Board Edge, Cutout; Surface Mount
Connector Type
Plug, Male Pin
Fastening Type
Snap-On
Insertion Loss
0.42dB
Connector Style
SMP
Frequency - Max
12 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
6012420212
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Series | WR-SMP |
| Features | Limited Detent |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Finish | Gold |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, Cutout; Surface Mount |
| Connector Type | Plug, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | 0.42dB |
| Connector Style | SMP |
| Frequency - Max | 12 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | 6012420212 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
