Step1: Product
Würth Elektronik 171013801

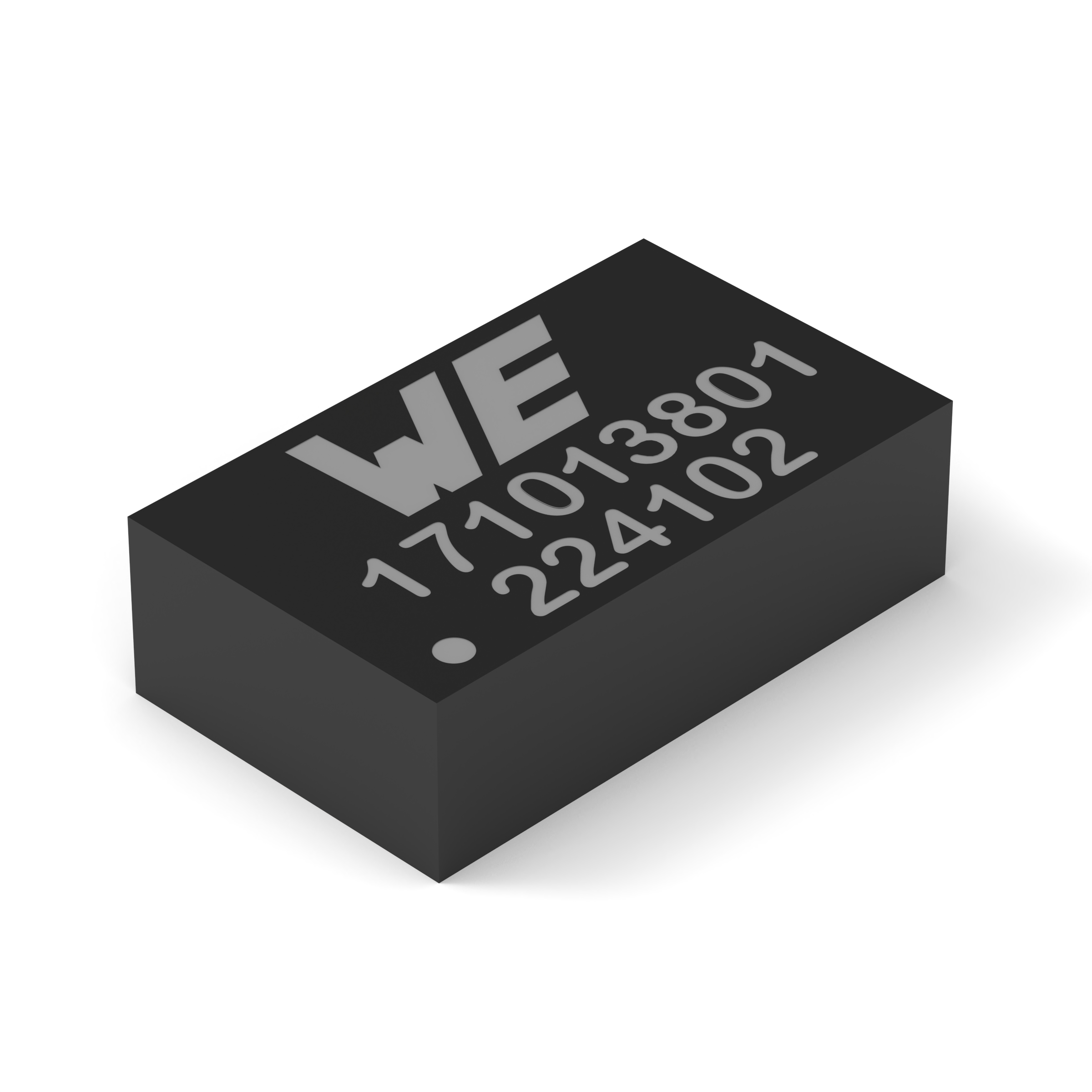

Image shown is a representation only
Manufacturer
Manufacturer No
171013801
Package
12-LGA Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
WPME-VDLM VARIABLE STEP DOWN REG
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.85 ~ 13V 1A 3.5V - 38V Input
DataSheet
Mfr
Würth Elektronik
Type
Non-Isolated PoL Module
Series
MagI³C, VDLM
Features
Adjustable Output
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Efficiency
96%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Package / Case
12-LGA Exposed Pad
Size / Dimension
0.39" L x 0.24" W x 0.12" H (10.0mm x 6.0mm x 3.1mm)
Number of Outputs
1
Voltage - Output 1
0.85 ~ 13V
Operating Temperature
-40°C ~ 105°C
Voltage - Input (Max)
38V
Voltage - Input (Min)
3.5V
Current - Output (Max)
1A
Supplier Device Package
12-LGA (10x6)
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Type | Non-Isolated PoL Module |
| Series | MagI³C, VDLM |
| Features | Adjustable Output |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Efficiency | 96% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Package / Case | 12-LGA Exposed Pad |
| Size / Dimension | 0.39" L x 0.24" W x 0.12" H (10.0mm x 6.0mm x 3.1mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0.85 ~ 13V |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Input (Max) | 38V |
| Voltage - Input (Min) | 3.5V |
| Current - Output (Max) | 1A |
| Supplier Device Package | 12-LGA (10x6) |
