Step1: Product
Würth Elektronik 140816141410

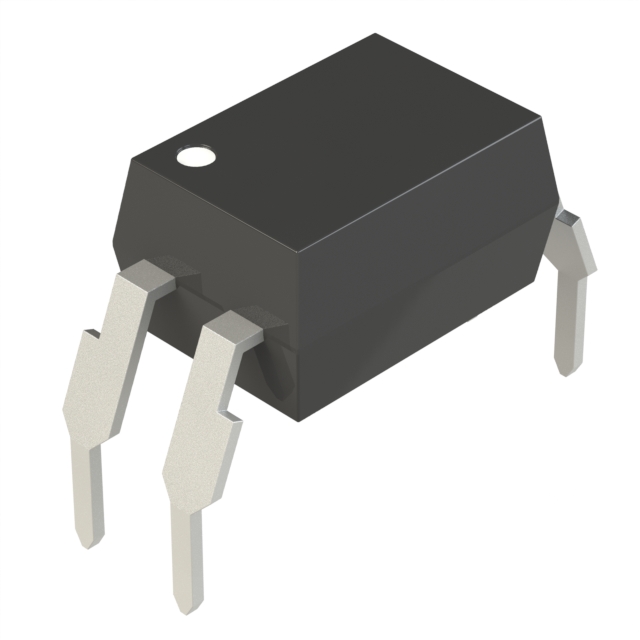

Image shown is a representation only
Manufacturer
Manufacturer No
140816141410
Package
4-DIP (0.400", 10.16mm)
Packaging
Tube
Description
OPTOISOLTR 5KV 1CH TRANS 4-DIP-M
Detailed Description
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP-M
Datasheet
Series
WL-OCPT
Packaging
Tube
Input Type
DC
Output Type
Transistor
Manufacturer
Würth Elektronik
Mounting Type
Through Hole
Package / Case
4-DIP (0.400", 10.16mm)
Number of Channels
1
Voltage - Isolation
5000Vrms
Operating Temperature
-55°C ~ 110°C
Rise / Fall Time (Typ)
3µs, 4µs
Voltage - Output (Max)
80V
Supplier Device Package
4-DIP-M
Current - Output / Channel
50mA
Current Transfer Ratio (Max)
600% @ 5mA
Current Transfer Ratio (Min)
300% @ 5mA
Voltage - Forward (Vf) (Typ)
1.24V
Current - DC Forward (If) (Max)
60 mA
| Attribute | Value |
|---|---|
| Series | WL-OCPT |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Transistor |
| Manufacturer | Würth Elektronik |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.400", 10.16mm) |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Operating Temperature | -55°C ~ 110°C |
| Rise / Fall Time (Typ) | 3µs, 4µs |
| Voltage - Output (Max) | 80V |
| Supplier Device Package | 4-DIP-M |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Current Transfer Ratio (Min) | 300% @ 5mA |
| Voltage - Forward (Vf) (Typ) | 1.24V |
| Current - DC Forward (If) (Max) | 60 mA |
