Step1: Product
Visual Communications Company - VCC VAOL-S19337R6GHBH

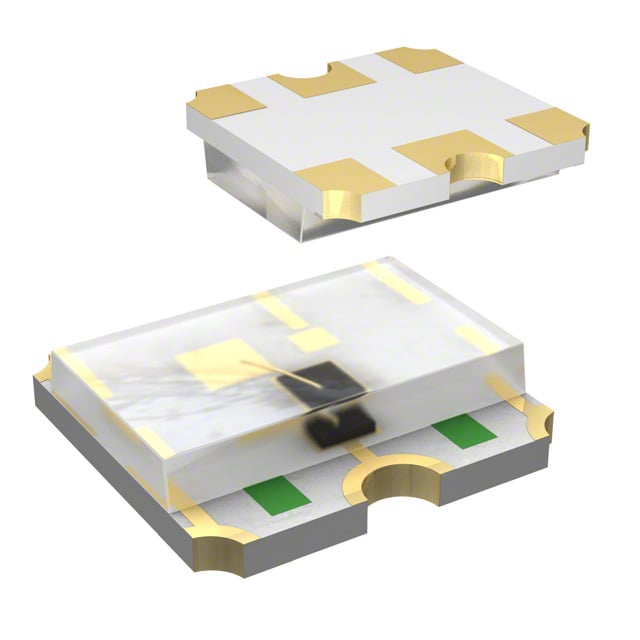

Image shown is a representation only
Manufacturer
Manufacturer No
VAOL-S19337R6GHBH
Package
6-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB CLEAR SMD
Detailed Description
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 6-SMD, No Lead
Mfr
Visual Communications Company - VCC
Color
Red, Green, Blue (RGB)
Lens Size
1.00mm x 1.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.45mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-SMD, No Lead
Size / Dimension
1.60mm L x 1.60mm W
Lens Transparency
Clear
Wavelength - Peak
632nm Red, 518nm Green, 468nm Blue
Base Product Number
VAOL-S19337
Millicandela Rating
100mcd Red, 180mcd Green, 50mcd Blue
Wavelength - Dominant
624nm Red, 525nm Green, 470nm Blue
Supplier Device Package
SMD
Voltage - Forward (Vf) (Typ)
2V Red, 3.3V Green, 3.3V Blue
| Attribute | Value |
|---|---|
| Mfr | Visual Communications Company - VCC |
| Color | Red, Green, Blue (RGB) |
| Lens Size | 1.00mm x 1.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.45mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 632nm Red, 518nm Green, 468nm Blue |
| Base Product Number | VAOL-S19337 |
| Millicandela Rating | 100mcd Red, 180mcd Green, 50mcd Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | SMD |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
