Step1: Product
Visual Communications Company - VCC CMD1522VRVGCTR8

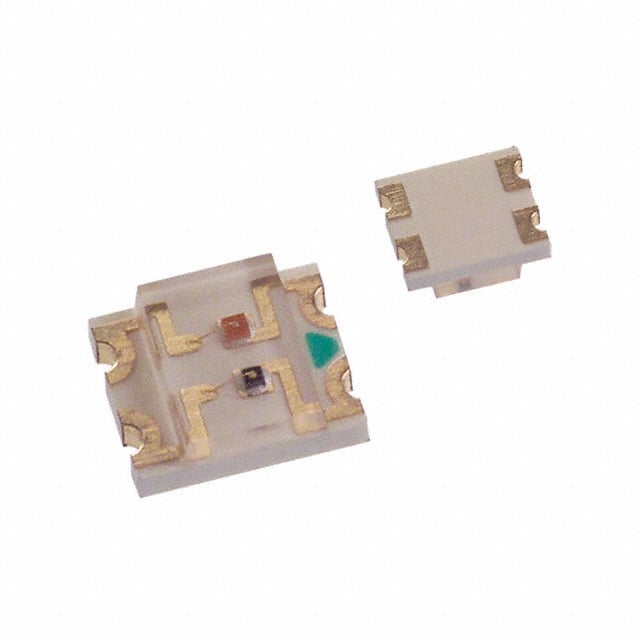

Image shown is a representation only
Manufacturer
Manufacturer No
CMD1522VRVGCTR8
Package
1210 (3225 Metric)
Packaging
Tape & Reel (TR)
Description
LED GREEN/RED CLEAR 1206 SMD
Detailed Description
Green, Red LED Indication - Discrete 2.1V Green, 2.8V Red 1210 (3225 Metric)
Datasheet
Mfr
Visual Communications Company - VCC
Color
Green, Red
Lens Size
2.70mm x 2.00mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Height (Max)
1.10mm
Configuration
Independent
Mounting Type
Surface Mount
Current - Test
20mA Green, 20mA Red
Package / Case
1210 (3225 Metric)
Size / Dimension
3.20mm L x 2.70mm W
Lens Transparency
Clear
Wavelength - Peak
570nm Green, 640nm Red
Millicandela Rating
10mcd Green, 20mcd Red
Supplier Device Package
1206
Voltage - Forward (Vf) (Typ)
2.1V Green, 2.8V Red
| Attribute | Value |
|---|---|
| Mfr | Visual Communications Company - VCC |
| Color | Green, Red |
| Lens Size | 2.70mm x 2.00mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 1.10mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Current - Test | 20mA Green, 20mA Red |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 570nm Green, 640nm Red |
| Millicandela Rating | 10mcd Green, 20mcd Red |
| Supplier Device Package | 1206 |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.8V Red |
