Step1: Product

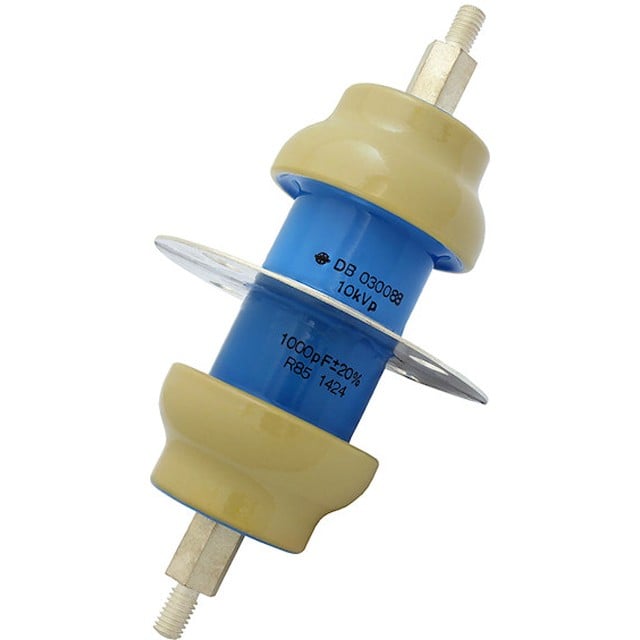

Vishay DB030100BP10138BF1
Image shown is a representation only
Manufacturer
Manufacturer No
DB030100BP10138BF1
Package
Axial - Threaded Terminals
Packaging
Bulk
Description
CAP FEEDTHRU 100PF 20% 8KV AXIAL
Detailed Description
100 pF Feed Through Capacitor 8000V (8kV) 30 A Axial - Threaded Terminals
Datasheet
Type
Feed Through
Series
DB
Current
30 A
Packaging
Bulk
Tolerance
±20%
Capacitance
100 pF
Thread Size
M6
Manufacturer
Vishay
Mounting Type
Bolt Mount
Package / Case
Axial - Threaded Terminals
Voltage - Rated
8000V (8kV)
Size / Dimension
1.770" Dia x 3.937" L (44.96mm x 100.00mm)
Operating Temperature
-55°C ~ 100°C
| Attribute | Value |
|---|---|
| Type | Feed Through |
| Series | DB |
| Current | 30 A |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 100 pF |
| Thread Size | M6 |
| Manufacturer | Vishay |
| Mounting Type | Bolt Mount |
| Package / Case | Axial - Threaded Terminals |
| Voltage - Rated | 8000V (8kV) |
| Size / Dimension | 1.770" Dia x 3.937" L (44.96mm x 100.00mm) |
| Operating Temperature | -55°C ~ 100°C |
